Ethanol Extraction Equipment

Capacity: 50L-3000L etc
Heating method: Electric heating, steam heating
Materials: SS304/SS316
Application: Pharmaceutical, Health products,
Biological, Food, Chemical

Product Description:

1. Product introduction

Ethanol extraction machine is consist of two parts , one is the extraction machine. The other is the concentration machine. So this is not only extract the herbal, it also have a concentrator to concentrate the liquid after extract.



2. Application

1)Ethanol extraction machine for herb extractor is applicable for plants(like flowers, leafs ,roots and so on) with vacuum or without vacuum.

And it also for the collagen protein, like the pigskin collagen protein extraction.

2)Ethanol extraction machine is used for concentrate the solvent containing water or organic solvents but dilute low level of suspended solids. Such as pollution, solvent recovery, wastewater treatment, the concentrated extract, fruit juice concentrates, etc.

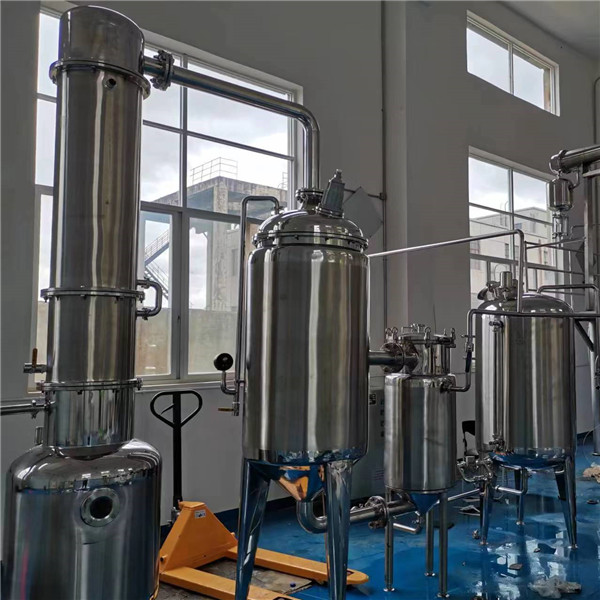

herbal extraction machine.jpg

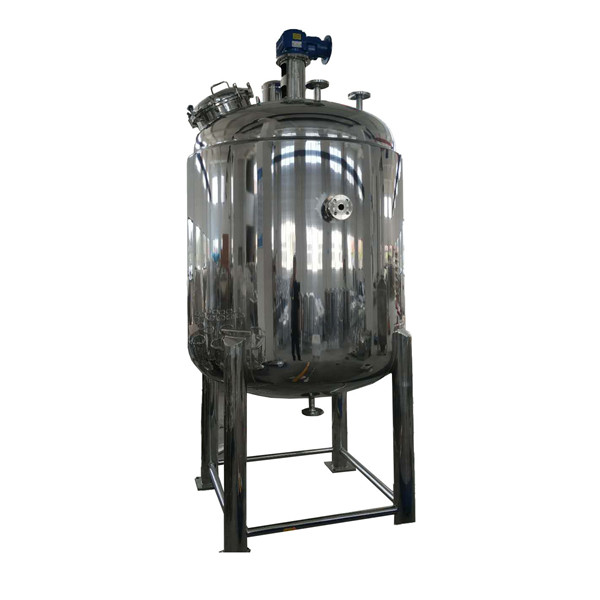

ethanol extraction.jpg

3. Feature

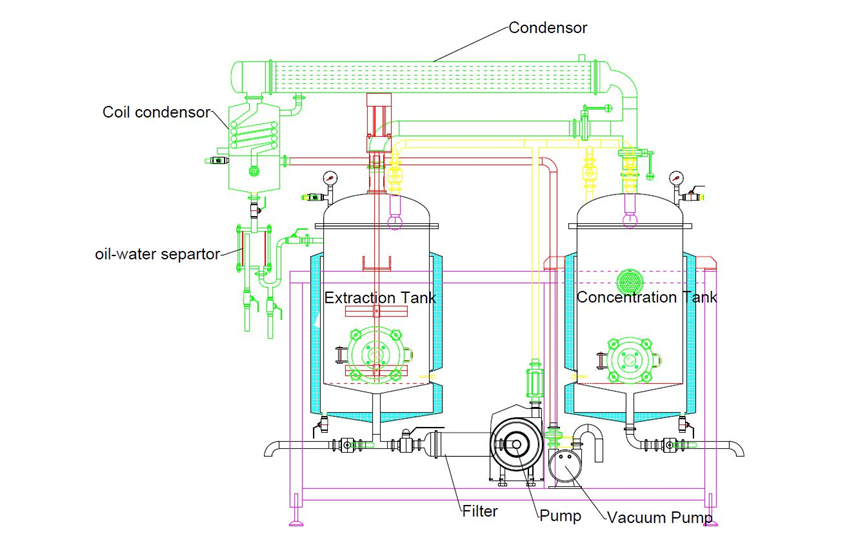

a. This equipment Shanghai manufacturer extraction machinery herbal plant extract machine has excellent manufacture,complete collocation, simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.

b.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumference,low temperature circumference,low temperature concentration and essential oil collection etc.

c.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is especially suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

d.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.



4. Technical parameter

Model

Volume

Heat power

Heat method

Vacuum

Temperature

Materials

Stirring
power

Condensation
area

Heating
area

Vacuum
pump

HTC-50

50L

15kw

Electric heating, steam heating, thermal oil heating, hot water circulation

-0.06~ -0.09 (Mpa), Jacket pressure: 0-0.3 (Mpa)

Normal temperature -110℃, concentration temperature 40-65℃

SS304/
SS316

0.55kw

3.0㎡

0.55㎡

2.2kw

HTC-100

100L

18kw

0.75kw

4.0㎡

0.86㎡

2.2kw

HTC-200

200L

24kw

1.1kw

5.0㎡

1.2㎡

2.2kw

HDC-300

300L

48kw

1.5kw

8.0㎡

2.2㎡

3.0kw

5. Picture

ethanol extraction and concentration machine.jpg
