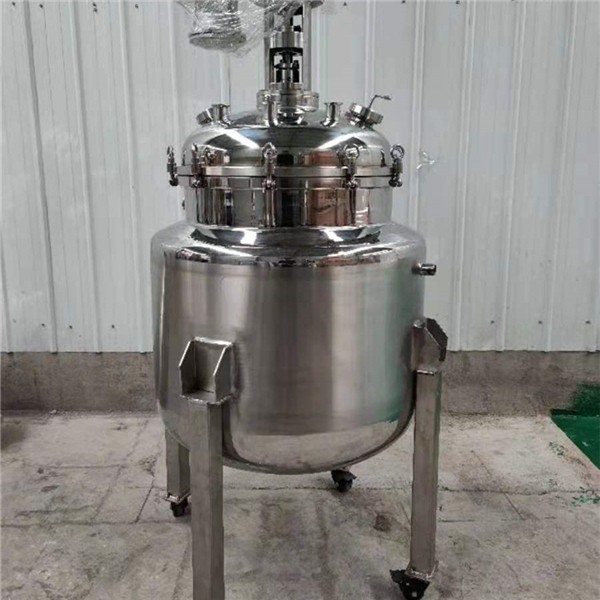

50L-300L Mixing Equipment

Capacity: 50L-300L
Jacket: Single layer, double jacket, three-layer
Material: SS304 / 316L Stainless steel
Application: medicine, chemical industry, food industry, light industry

Product Description:

1. Product introduction

Mixing equipment is one of the typical reactive equipment in chemical, pharmaceutical and foodstuff industries. It accelerates chemical reaction by mixing two or more types of liquid. or gas materials of certain capacity with stirrer under certain pressure and temperature. It is often accompanied by heat effect. The heat required is input or exhausted by heat-exchanging device.

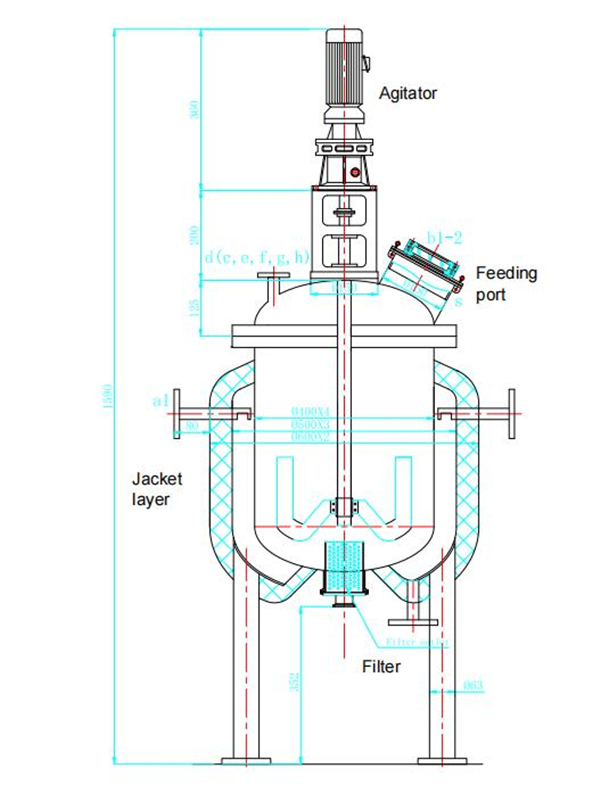

The equipment mainly consists of tank, jacket and stirring system. The stirring type is mostly gate type, ensuring materials fully mixed within short time; The sealing type is mostly gate type. keeping pressure in tank and preventing materials in tank from leaking and resulting in unnecessary pollution. The parts in contact with material are made of 304 or 316L stainless steel in conformity with sanitary standard.

2. Technical parameter

Volume (L)	Diameter (mm)	Tank height (mm)	Total height (mm)	Motor power (KW)	Weight (kg)
50L	450	500	980	0.2	30
100L	600	650	1150	0.75	53
200L	700	800	1260	0.75	73
300L	800	950	1450	1.1	93

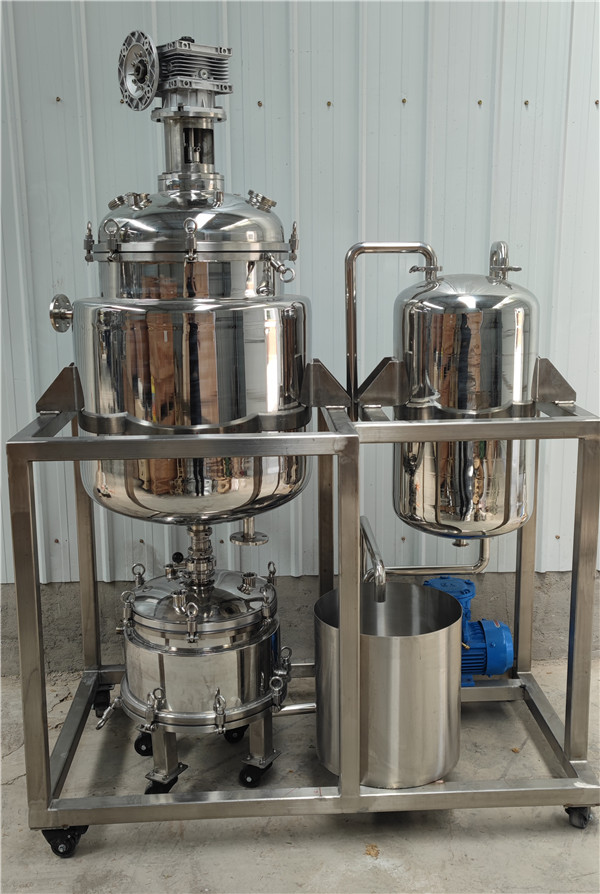

4. solvent extractor.jpg

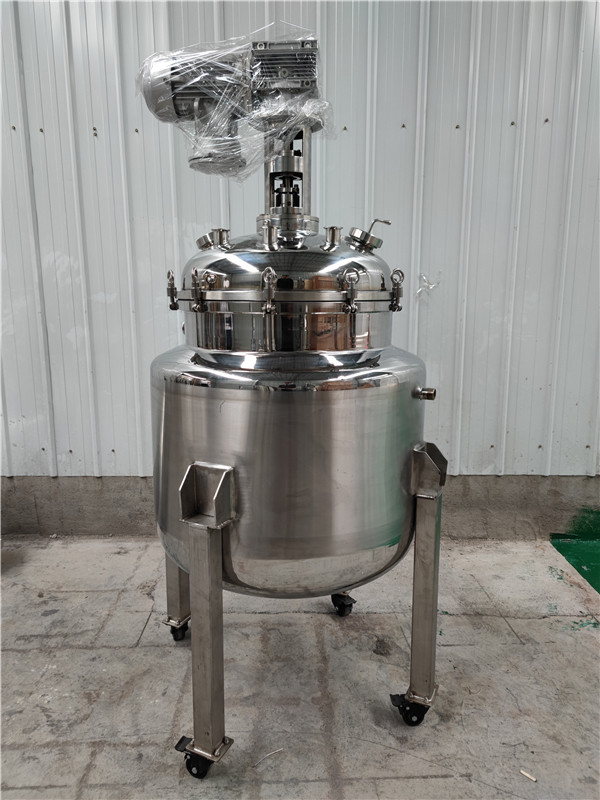

4 mixer (5).jpg

3. Feature

Material	SS304 / 316L(Stainless steel).
Capacity	50-5000L (customized is accepted).
Jacket	Single layer, double jacket, three-layer.
Thickness	2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure).
Head	Open cover, seal with manhole/handhole etc.
Shape	Cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method	Steam, electricity.

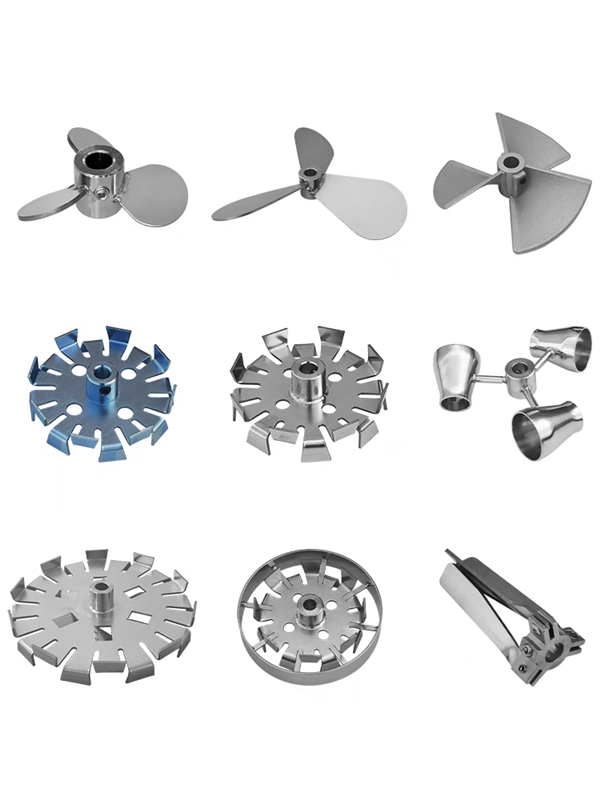

mixer blade.jpg

4. Application

Agitating reactor is mainly applicable to the production steps such as hydrolysis, neutralization, crystal, distillation, and storing etc in the industries of medicine (materials workshop, synthesizing workshop), chemical industry, food, light industry etc

4 mixer (3)_副本.jpg
