Eucalyptus Peppermint Patchouli Essential Oil Extract Machine

Various essential oil extraction equipment:

Plant essential oils are the unique aromatic substances extracted from plants. They are extracted from the flowers, leaves, roots, bark, fruits, seeds, resins, etc. of herbal plants through distillation and pressing.

Plants that can be extracted include rose, camphor, L-brain, dextro-brain, ginger, from aromatic tree, angelica anise, arnica, arnica, basil, laurel, Melaleuca, camphor, parsley, cinnamon cypress, chamomile , chamomile, Ceylon cinnamon, salvia, cloves, coriander, dill, eucalyptus, cumin, frankincense, geranium, juniper, lavender tangerine, lemon balm, marjoram, nutmeg, Citrus spp., Citrus spp. Oregano, parsley, orchid, mint, pinus, rosa, rosemary, sandalwood, white pearl tree, genus

Working principle of plant essential oil extraction equipment:

The equipment uses direct steam heating to recover solvents and volatile oils. The recovery process is cooled by the condenser to recover the solvents and volatile oils, with high recovery efficiency;

Through our company's special oil-water separator, made of transparent borosilicate glass, the layering effect of aromatic oil can be clearly seen, and the oil extraction is convenient and simple.

Plant essential oil extraction equipment manufacturing configuration:

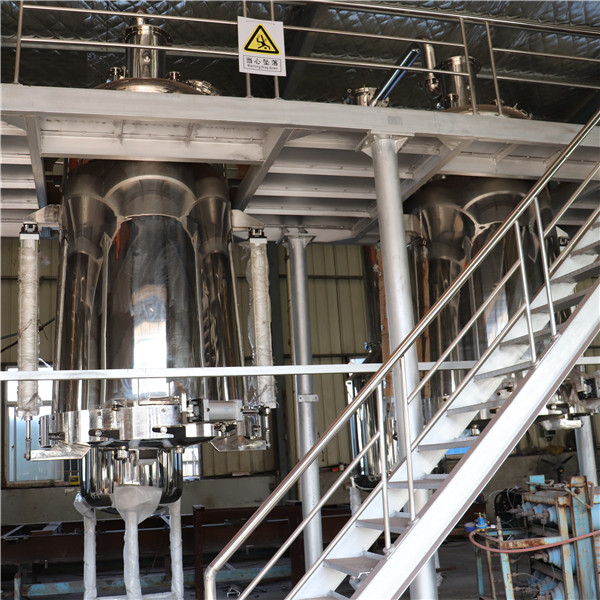

The extraction tank is a forward cone type with a four-ear hanging support. The upper head is equipped with a quick-open feeding port. The secondary steam outlet is equipped with a defoaming device. The bottom is a diameter pneumatic slag discharge door (optional), equipped with two The cylinder is equipped with a safety interlocking device and a sieve-shaped filter device inside. The screen is supported by a sun plate and a punching plate to prevent deformation;

The extraction tank is made of stainless steel SUS304, a special material suitable for essential oil extraction;

The total volume of the extraction tank is 1-10m3, the pressure inside the tank is normal, and the working pressure of the cylinder is 0.7MPa;

Use anti-aging pearl cotton or high-temperature resistant polyurethane foam for insulation, with a thickness of insulation layer δ=50mm;

Multi-program tube condensers, coolers, high-efficiency oil-water separators, and equipment containers have mirror-polished inner walls and mirror-polished or matte outer surfaces, complying with GMP certification requirements.

Each model is for reference: This equipment is a non-standard design and can be customized according to user needs;
