Grain Crushing Machine

Capacity: 80-2000kg/h
Voltage: 220V/380V
Application: grain, spices, nut,herbs,wood, branch, root etc
Materials: contacting part 304 stainless steel

Product Description:

Uses of coarse crusher: Suitable for Chinese medicinal materials, food, chemical industry, metallurgy and other industries, as supporting equipment for the front process of hard and fragile processing. It is not affected by the viscosity of the material, and can process materials that are difficult to crush with hardness, including plastics, steel wires, etc. It can also be used as a softness and fiber, etc., and can have a good crushing effect on any material.

Working principle of coarse crusher: horizontal crushing structure, the material enters the crushing chamber from the feed hopper, and is crushed by impact and shearing of the rotating knife and the fixed knife. Under the action of the rotating centrifugal force, the material automatically flows to the outlet. The machine is designed according to GMP standards + the machine model is made of stainless steel, with a simple structure, easy cleaning and low noise. It is currently the most ideal equipment for coarse crushing

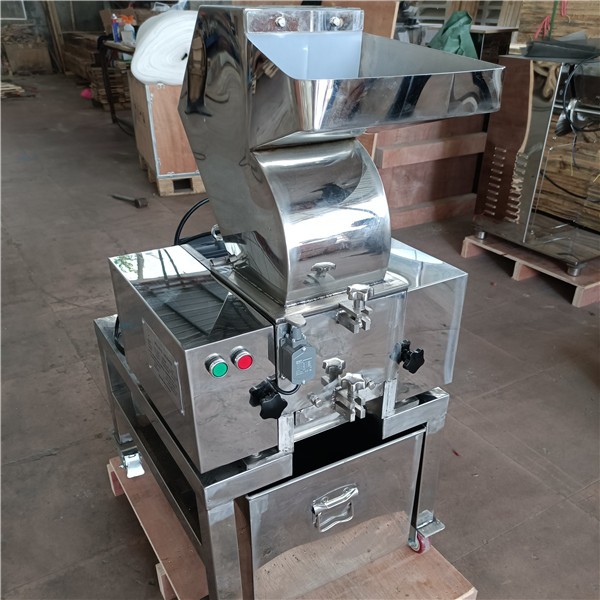

5.Grain Crushing Machine.jpg

Model	Capacity (kg/h)	Weight (kg)	Voltage (V)	Motor Power(KW)	Movable Knife No.	Fixed Knife No.	Spindle speed (r/min)	Dimensions (mm)
PE-180S	80-150	140	220V	2.2	9	2	720	5508401200
PE-250S	120-280	190	380V	4	6	2	690	64510021152
PE-400S	200-400	355	380V	7.5	12	2	600	84511251335
PE-600S	300-500	580	380V	15	18	4	490	104813811416
PE-800S	500-1000	980	380V	22-37	24	4	450	129017431716
PE-1000S	800-2000	1400	380V	37	30	4	400	148514852112
