Capacity: 20-2000kg/h Voltage: 220V/380V Application: cocoa cake,herbs, spices,wheat,grain etc Materials: contacting part 304 SS
1. Product introduction
High efficiency grinding machine is mainly used in the fields of pharmaceuticals, chemical industries, foodstuff etc.
It is mainly used to grind chemical materials, Chinese medicine herbs containing timber root, tree leaves, blocks materials,
kinds of grains with low oil, whole grains and other rigid and crispy materials, such as gringer, chilli, sugar, salt, pepper,
oil wheat, bean, star anise, cinnamon, dried vegetables etc. When grinding materials with middle-low rigidity, the fineness
keeps between 10 mesh and 120 mesh. The advantages for this machine as follows: high yield, fine granularity, low noise,
low energy consumption, simple maintenance, convenient installation etc.

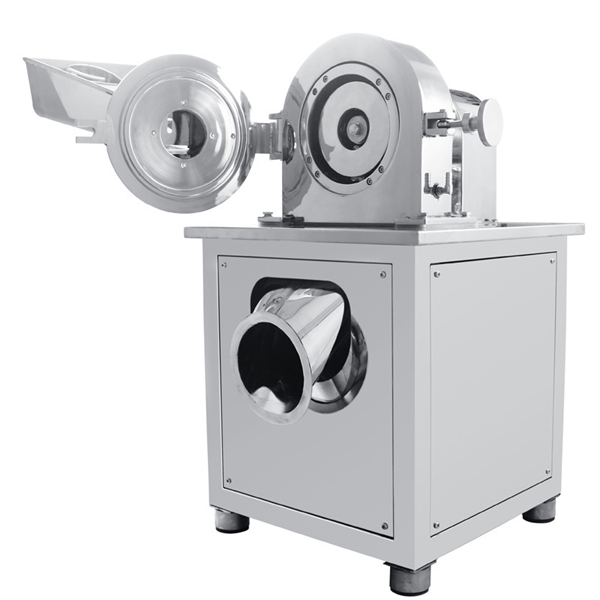

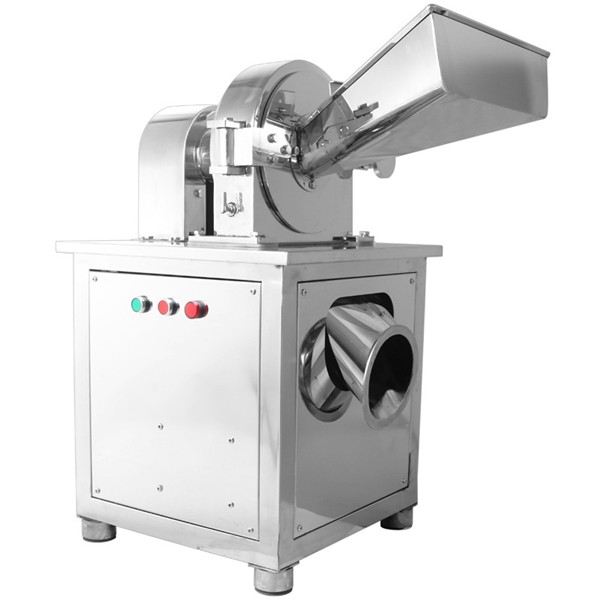

2. Picture
3. Technical parameter
Model | Capacity | Feeding fineness | Fineness | Weight | Mainshaft speed | Voltage | Power | Dimension |
GN-20 | 20-150 | 10 | 30-150 | 120 | 5200 | 380/220 | 3 | 720*530*880 |
GN-24 | 50-300 | 12 | 30-150 | 164 | 4600 | 380 | 5.5 | 860*570*1060 |
GN-28 | 80-500 | 12 | 30-150 | 210 | 4200 | 380 | 7.5 | 890*620*1130 |
GN-36 | 150-800 | 12 | 30-150 | 320 | 3570 | 380 | 15 | 1040*840*1330 |
GN-42 | 200-1200 | 12 | 30-150 | 410 | 2700 | 380 | 18.5 | 1070*780*1350 |
GN-50 | 300-1500 | 12 | 30-150 | 660 | 2000 | 380 | 30 | 1372*910*1561 |
GN-80 | 800-2000 | 12 | 30-150 | 860 | 2000 | 380 | 37 | 1960*1451*1824 |
4. Application
