Small Mixing Equipment

Volume: 10-50L
Voltage: 220V
Rod Materials: PTFE/stainless steel

Product Description:

1. Introduction

EM series electric stirrer is an experimental equipment for liquid mixing and stirring, widely used in pharmaceutical, chemical industry, food industry, R&D instituion and university colleges.

2. Features

1. AC motor with step-less speed regulation or frequency converter, no brush, no spark and long useful life.

2. Equipped with speed feedback system. Constant rotating speed, and won't effected by the change of material viscosity and voltage.

3. Digital display and controlled water/oil bath and heating mantle is option.

4. PTFE Stirrer(Anchor type, frame type, propeller type, four-blade type for choose)

Anti-corrosion, anti - adhesion, meet the requirements of various experiments.

5.We can provide customized service according your requirements.

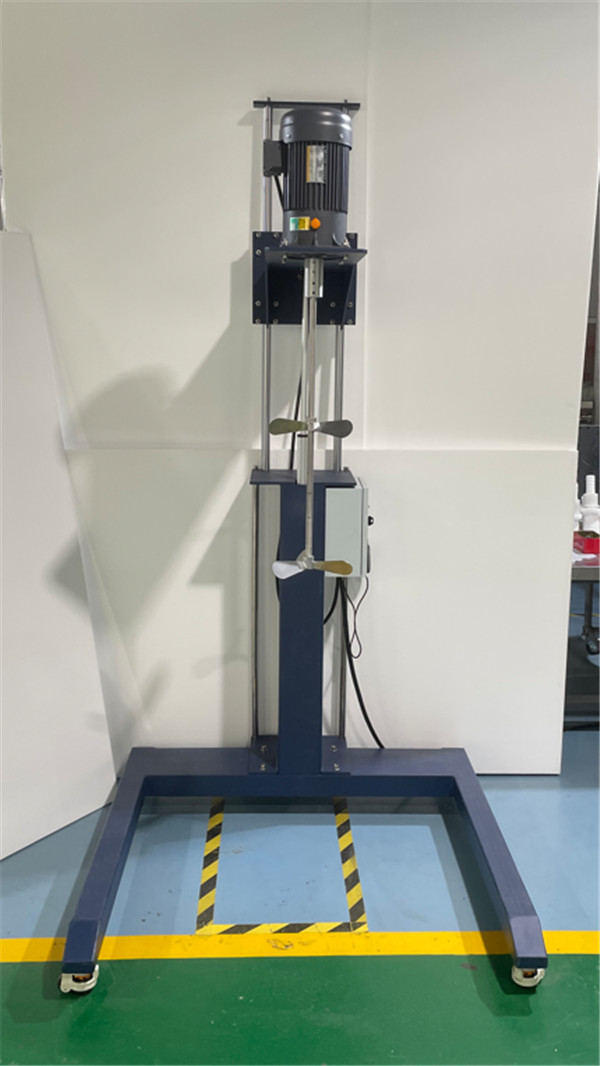

small mixer.jpg

3.Technical Date

Model	EM-120W EX	EM-180 EW	EM-370W EX
Max. stir quantity	10-20L	20-30L	30-50L
Motor power	120W	180W	370W
Voltage	AC 220V	AC 220V	AC 220V
Speed range	0-680rpm	0-680rpm	0-680rpm
Display	LED	LED	LED
Speed display resolution	±1rpm	±1rpm	±1rpm
Stirring shaft diameter (Customizable)	10mm	10mm	16mm
Drill chuck diameter (Customizable)	10mm	10mm	16mm
Stirring rod diameter (Customizable)	600mm	600mm	600mm
Stirring rod material	PTFE/stainless steel	PTFE/stainless steel	PTFE/stainless steel
Base plate size	380*450mm	380*450mm	500*600mm
Height from base plate to motor bottom	800mm	800mm	800mm
Overall machine height (Customizable)	1100mm	1100mm	1100mm
