Capacity: 80-2000kg/h Voltage: 220V/380V Application: grain, spices, nut,herbs,wood, branch, root etc Materials: contacting part 304 stainless steel
1. Product introduction

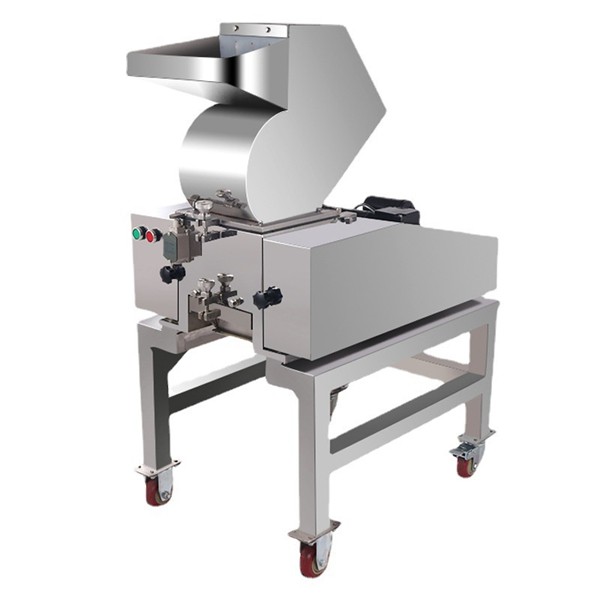

This kind of whole stainless steel crushing machine consists of five components of machine shelf,feeding hopper,
crushing cavity,sieve mesh shelf,connecting hopper etc.Its advantages include simple
construction,convenient washing,low noise and good effect.At present,it is an ideal stainless steel crushing equipment.
When the machine works,the materials enter into the crushing cavity from the feeding hopper.It obtains crushing effect
through collision and shearing between rotating motive knives and fixed knives.It obtains ideal particles through distance
adjustment between knives and matching appropriate sieve mesh

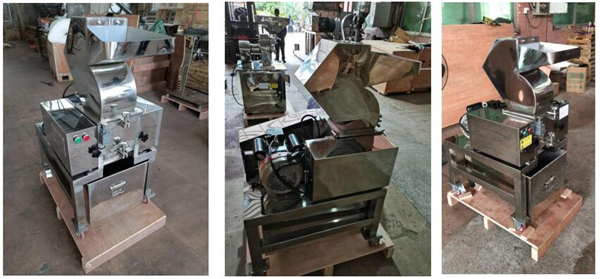

2. Picture
3. Technical parameter
Model | Capacity | Weight | Voltage | Motor Power(KW) | Movable Knife No. | Fixed Knife No. | Spindle speed | Dimensions |
PE-180S | 80-150 | 140 | 220V | 2.2 | 9 | 2 | 720 | 550*840*1200 |
PE-250S | 120-280 | 190 | 380V | 4 | 6 | 2 | 690 | 645*1002*1152 |
PE-400S | 200-400 | 355 | 380V | 7.5 | 12 | 2 | 600 | 845*1125*1335 |
PE-600S | 300-500 | 580 | 380V | 15 | 18 | 4 | 490 | 1048*1381*1416 |
PE-800S | 500-1000 | 980 | 380V | 22-37 | 24 | 4 | 450 | 1290*1743*1716 |
PE-1000S | 800-2000 | 1400 | 380V | 37 | 30 | 4 | 400 | 1485*1485*2112 |
4. Application
