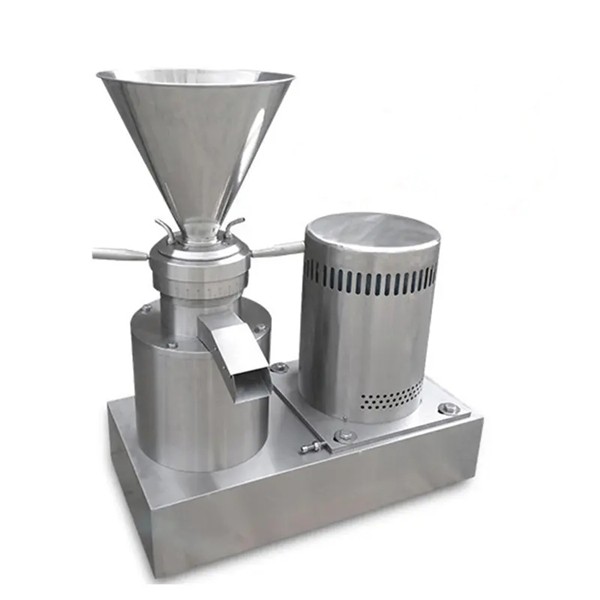

Cocoa Liquor Grinder

Capacity: 50-5000kg/h
Voltage: 220V/380V
Application: Chili sauce, cocoa liquor, soybean milk,
peanut butter,tomato sauce, vegetable juice
Materials: contacting part 304 SS/full 304 SS

Product Description:

1. Product introduction

The raw materials can be grinded :Cacao Bean,Pepper, Tomato Sauce, Sesame Sauce, Walnut Sauce,

Nut Sauce, Pineapple Jam, Strawberry Jam, Chili Sauce, Shrimp Fish Sauce, Chicken Sauce, Vegetable

Juice, Soy Milk, Onion Juice, Tahini Sauce, Black Fungus, Peanut Butter, Xanthan Gum etc, all kinds of paste.

2. Picture

3. Technical parameter

Model	Capacity (kg/h)	Power (kw)	Grinding fineness	Rotation rate	Voltage (V)	Dimension (mm)	Weight (kg)
JM-50	50-200kg/h	2.2kw	Paste type: 100-500mesh Liquid type: 10-70μm	3000r/min	220V/50Hz single phase	850400530	130
JM-85	100-200kg/h	7.5kw	Paste type: 100-500mesh Liquid type: 10-70μm	3000r/min	380V/50Hz triple phase	820430800	140
JM-130	200-300kg/h	11kw	Paste type: 100-500mesh Liquid type: 10-70μm	3000r/min	380V/50Hz triple phase	950550900	200
JM-180	1000-2000kg/h	22kw	Paste type: 100-500mesh Liquid type: 10-70μm	3000r/min	380V/50Hz triple phase	10004501100	400
JM-240	1000-5000kg/h	37kw	Paste type: 100-500mesh Liquid type: 10-70μm	2800r/min	380V/50Hz triple phase	12005001100	500
Optional: contacting part stainless steel 304 and full stainless steel can be choosed.
