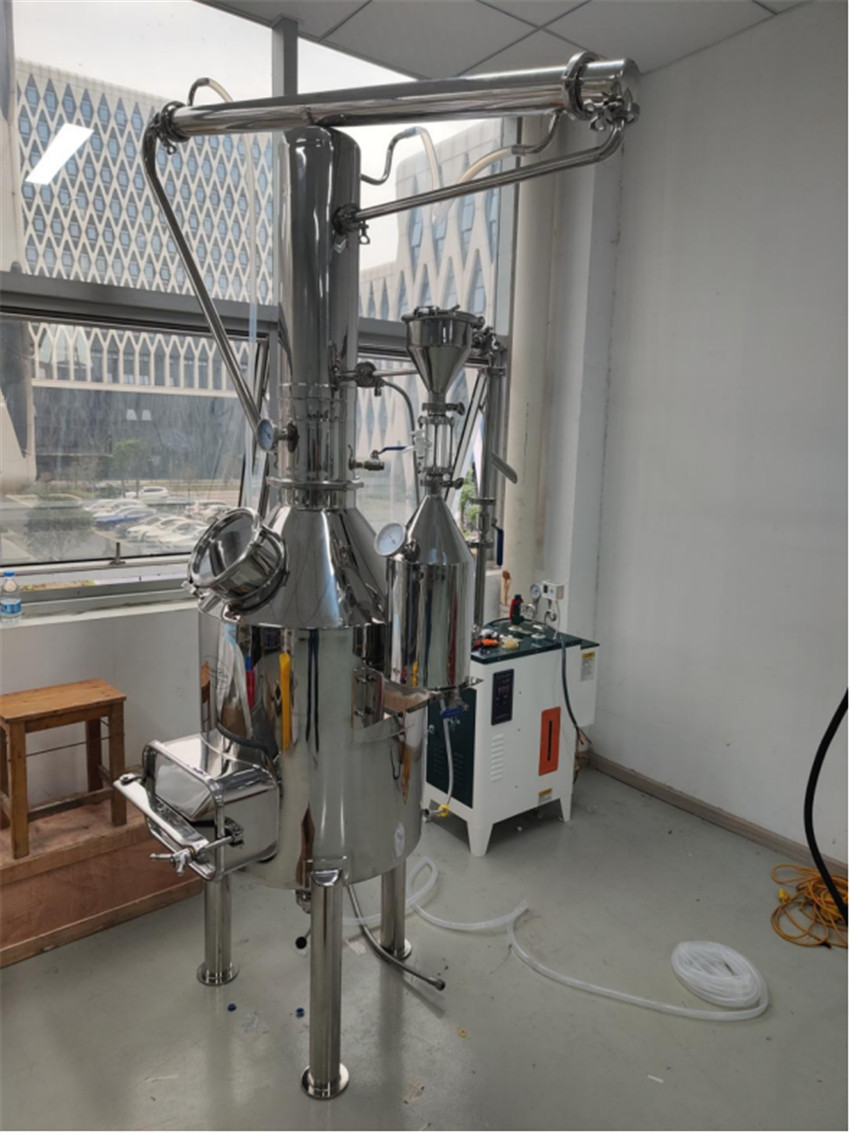

100L Essential oil distiller

Volume: 100L
Capacity: 15-20kg/batch
Steam quantity:12kg/h
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel etc

Product Description:

1. Production introduction

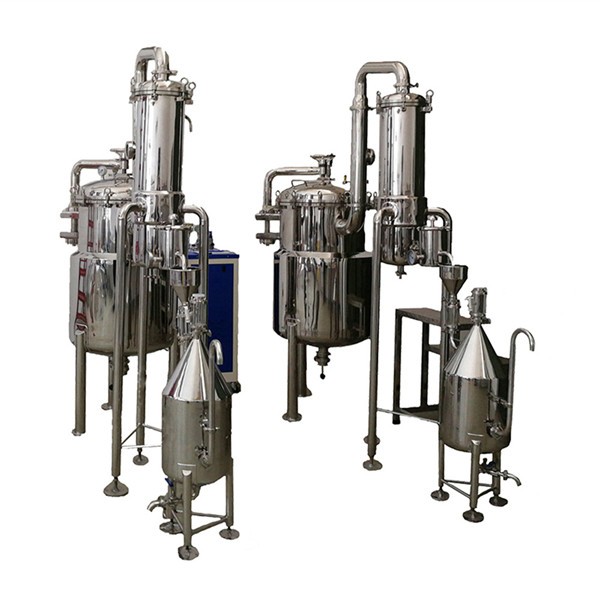

We have different structure of 100L-300L essential oil distillation machine, basket materials structure, side discharge structure, gourd shape structure etc, which can be chosen according to your raw materials characteristic.

It consists of distillation kettle, condenser, oil-water separator, electrical steam boiler, and other related pipelines composition.

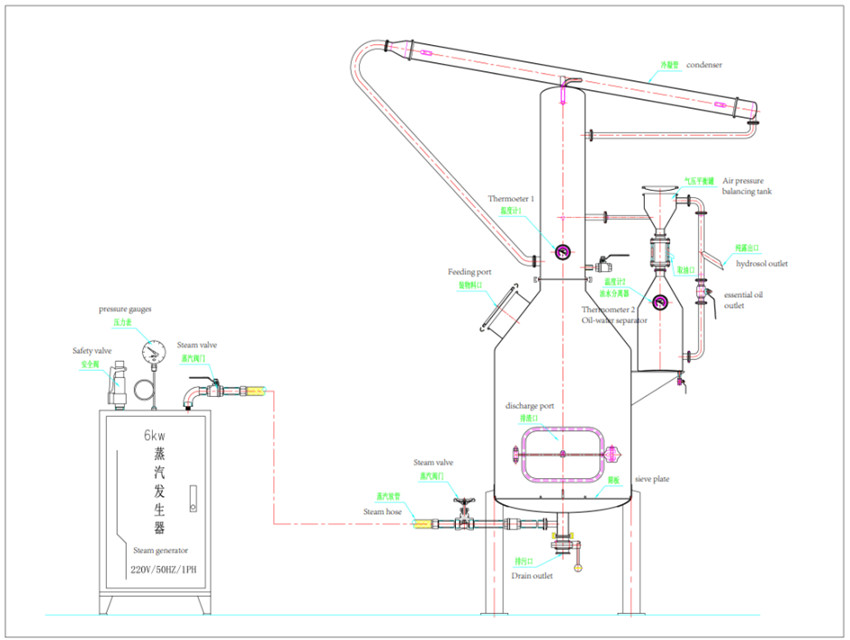

2. Structure & Picture

3. Technical parameter

Item/Model	SD-100L	SD-200L	SD-300L
Distillation kettle volume	100L	200L	300L
Capacity	15-20kg/batch	30-40kg/batch	50-60kg/batch
Working pressure	Atmospheric
Working temperature	95-105℃
Energy-saving insulation	Outer material δ=2mm/SUS304; Insulation:aluminum silicate, thickness 50mm
Heating area	0.6㎡	0.8㎡	1.1㎡
Condensing area	1.7㎡	2.4㎡	3.0㎡
Cooling area	1.7㎡	2.4㎡	3.0㎡
Condenser working pressure	0.25Mpa	0.25Mpa	0.25Mpa
Condenser inlet water temperature	<25℃
Distillation method	According to the material characteristics, to choose the steam distillation or hydro distillation
Heating method	Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel
Feed port caliber	300mm	300mm	350mm
Slag discharge caliber	Customized according to different distillation methods and material characteristics
Steam quantity	12kg/h	20kg/h	25kg/h
Water consumption	1.5T/h	2T/h	2T/h
