6000L Essential Oil Distiller

Volume: 6000L
Capacity: 1200kg/batch
Steam quantity:600kg/h
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Product Description:

1. Product introduction

We have different structure of 2000L-6000L essential oil distillation machine,such as basket materials structure, Inverted cone etc. According to raw materials characteristic and distillation method, which can choose different discharge method,basket materials slag discharge, bottom pneumatic slag discharge, manual butterfly valve slag discharge valve;

it consists of distillation kettle, top notes condensation collector, hydrolat collection tank, high efficiency condenser tower, discharge valve, oil-water separator, steam boiler and other related pipelines composition

Support equipment customize.

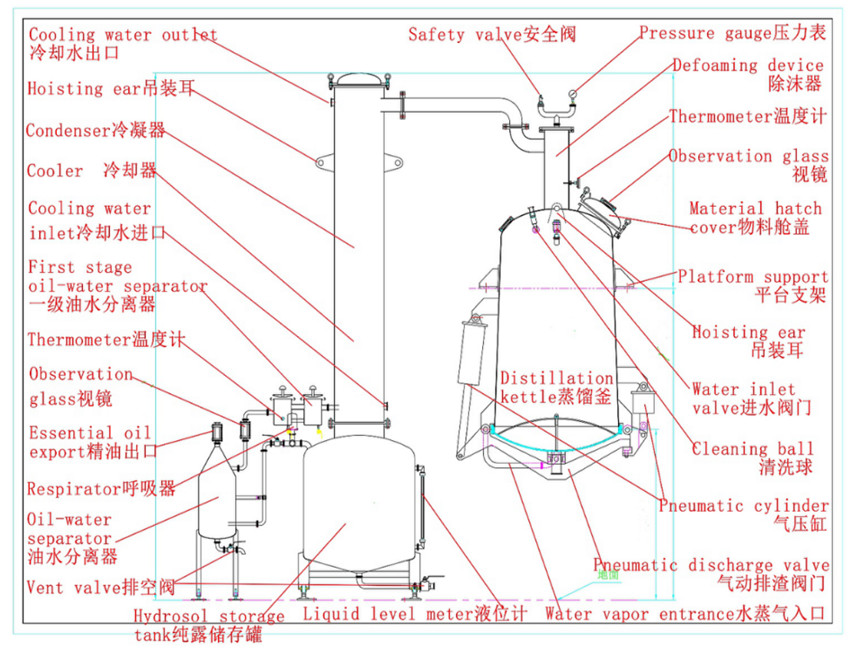

2. Structure & Picture


6000L distiller.jpg



3. Technical parameter

Item/Model

SD-2000L

SD-3000L

SD-6000L

Distillation kettle volume

2000L

3000L

6000L

Capacity

400kg/batch

600kg/batch

1200kg/batch

Working pressure

Atmospheric

Working temperature

95-105℃

Energy-saving insulation

Outer material δ=2mm/SUS304; Insulation:aluminum silicate, thickness 50mm

Heating area

5㎡

6.8㎡

9.5㎡

Condensing area

6㎡

13㎡

15㎡

Cooling area

Condenser working pressure

0.25Mpa

0.25Mpa

0.25Mpa

Condenser inlet water temperature

<25℃

Distillation method

According to the material characteristics, to choose the steam distillation or hydro distillation

Heating method

Electricty, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Feed port caliber

400mm

400mm

500mm

Slag discharge caliber

Customized according to different distillation methods and material characteristics

Evaporation

200kg/h

300kg/h

600kg/h

Water consumption

3.5T/h

4.2T/h

4.5T/h



4. Feature

a. it adopt three-dimensional steam distributor, materials are heated more evenly.

b. Equipped the latest technology of  top notes collector, it can condense and collect the head aroma components ( low molecular components) of volatile oil , and make the aroma of essential oil richer and full.

c. Our condensation tower adopt high efficiency vertical condensing , which is Europe condensing technology, better condensing effect with tube condenser + plate condenser + coil Cooler and no water residue in the pipeline.

d. Equipped hydrolat collection tank, the hydrosol as by-product has economic benefit.

e. Discharge method can be chosen according to raw materials characteristic and distillation method.

f. Re-distillation pipeline can be added according to customer's request.

g. Support the equipment customized.



5. Application

aromatic plant 3.jpg
