Capacity: 50-1000kg/h Voltage: 380V Application: cocoa bean Materials: contacting part 304 stainless steel
1. Product introduction
This machine is composed of peeling rollers, fans and specific gravity sorting parts. It has a simple and compact structure,
easy operation, stable performance, safety and reliability.
Working principle: The cocoa beans are fed uniformly into the hopper, and are peeled by the peeling roller. Then the ventilator
uses wind to suck the peeled skins to the outside of the machine for storage. The peeled cocoa beans are discharged through
the outlet. By adjusting the wind force and the size of the peeling gap, all the peeled kernels can be separated.

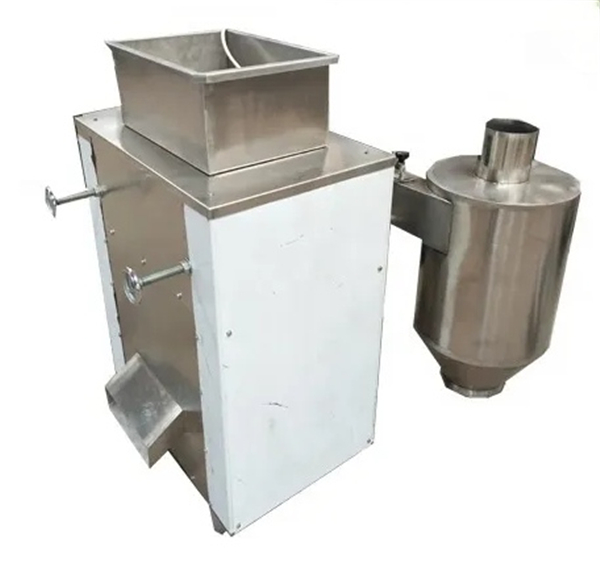

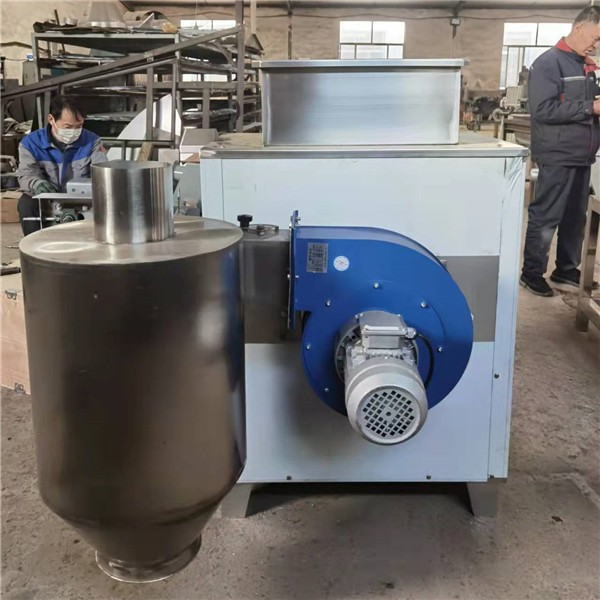

2. Picture
3. Technical parameter
Model | Capacity | Motor Power(kw) | Fan Power(kw) | Voltage | Dimension | Weight(kg) | Stripping rate |
CW-100N | 50-100kg/h | 0.4kw | 0.37kw | 380V 50Hz 3phase | 1000*1000*1300 | 95kg | >98% |
CW-100 | 50-100kg/h | 0.4kw | 0.37kw | 380V 50Hz 3phase | 1000*1000*1500 | 110kg | >98% |
CW-200 | 200kg/h | 0.75kw | 0.55kw | 380V 50Hz 3phase | 1200*1100*1200 | 140kg | >98% |
CW-100KT | 100kg/h | 0.75kw | 1.1kw | 380V 50Hz 3phase | 1400*600*1300 | 150kg | >99% |
CW-300KT | 300kg/h | 0.75kw | 1.5kw | 380V 50Hz 3phase | 1600*700*1400 | 200kg | >99% |
CW-400KT | 400-500kg/h | 1.1kw | 2.2kw | 380V 50Hz 3phase | 1600*1000*1400 | 280kg | >99% |
CW-1000KT | 1000kg/h | 4.4kw | 2.2kw | 380V 50Hz 3phase | 1900*1000*1400 | 300kg | >99% |
Materials:Hopper, roll, cover contacting part food stainless steel 304, frame ,transmission parts carbon steel and shell stainless steel 201 with cloth bag to collect the skin, without cyclone | |||||||
4. Application
