Capacity: 10L, 25L, 60L, 100L Voltage: 220V Application: nut paste, chocolate spreads, cream base, cocoa nibs, sugar powder etc Materials: SS304
1. Product introduction
Melanger is designed for artisanal food manufacturers and lab experiments.Refining maximizes the nutritional value, releasing the aroma of cocoa, as well as lengthens the shelf life of the product. It can grind cocoa nibs,make nut paste, pralines, spreads,ice cream base,etc.
The melanger is with granite stones which can grind cocoa particles to ≤20 μm with silky and smoothy taste. This is highly efficient and energy saving, it is equipped with a continuous operating motor without the risk of overheating and no need for external cooling fans.

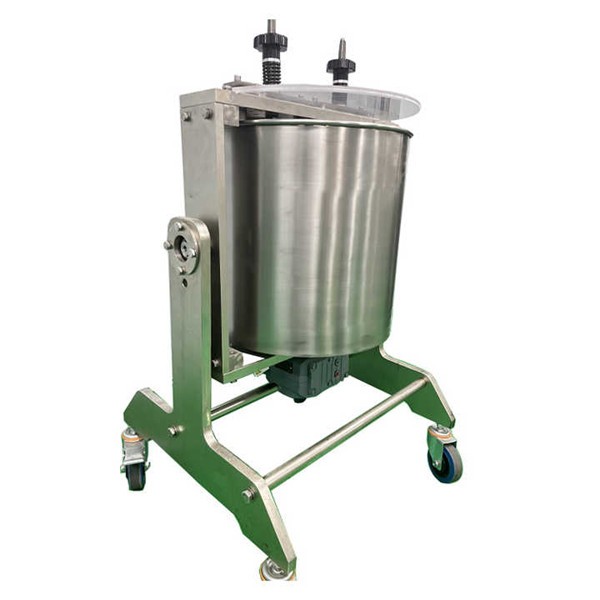

2. Picture
3. Technical parameter
Model | Motor power | Fineness | Capacity | Voltage | Grinding time | Machine size | Packing size | Weight |
GT-10 | 0.37kw | <25μm | 10L | 220V 50Hz | 24-48hours | 500*508*872mm | 730*720*1100mm | 98kg |
GT-25 | 0.75kw | <25μm | 25L | 220V 50Hz | 24-48hours | 686*797*1029mm | 890*840*1180mm | 198kg |
GT-60 | 1.5kw | <25μm | 60L | 220V 50Hz | 24-48hours | 680*826*1065mm | 1240*1040*1310mm | 385kg |
GT-100 | 3kw | <25μm | 100L | 220V 50Hz | 24-48hours | 675*742*1288mm | 1290*1200*1420mm | 550kg |
4. Application
nut paste, chocolate spreads, cream base, cocoa nibs, sugar powder, butter and other raw material
5. Feature
Only all-natural, high-quality granite stones
Refines particle size to less than 20 microns
Superior cooling system to prevent overheating
Sophisticated and elegant design
Motor is designed and tested to run continuously for up to 72 hours
Fully sealed and sturdy bearings, no sticking or seizing
Heat-triggered, cut-off switch to prevent overheating
