Ethanol Extraction And Concentration Machine

1. Product introduction

Ethanol extraction machine is consist of two parts , one is the extraction machine . The other is the concentration machine. So this is not only extract the herbal, it also have a concentrator to concentrate the liquid after extract.

2. Application

1)Ethanol extraction machine for herb extractor is applicable for plants(like flowers, leafs ,roots and so on) with vacuum or without vacuum.

And it also for the collagen protein, like the pigskin collagen protein extraction.

2)Ethanol extraction machine is used for concentrate the solvent containing water or organic solvents but dilute low level of suspended solids. Such as pollution, solvent recovery, wastewater treatment, the concentrated extract, fruit juice concentrates, etc.

3. Feature

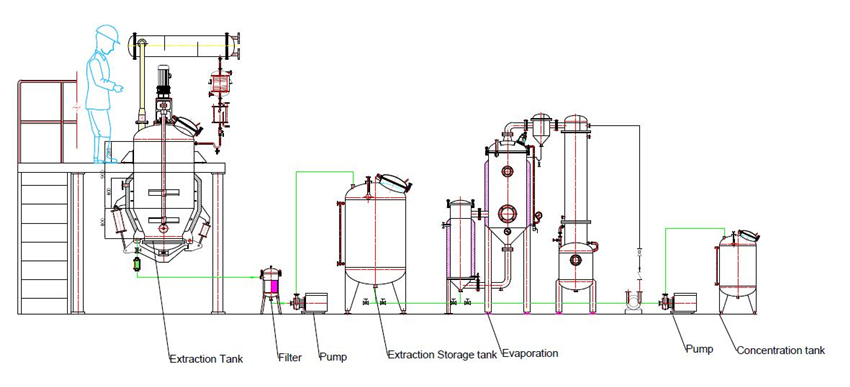

a. This equipment Shanghai manufacturer extraction machinery herbal plant extract machine has excellent manufacture,complete collocation, simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.

b.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumference,low temperature circumference,low temperature concentration and essential oil collection etc.

c.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is especially suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

d.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.

4. Technical parameter

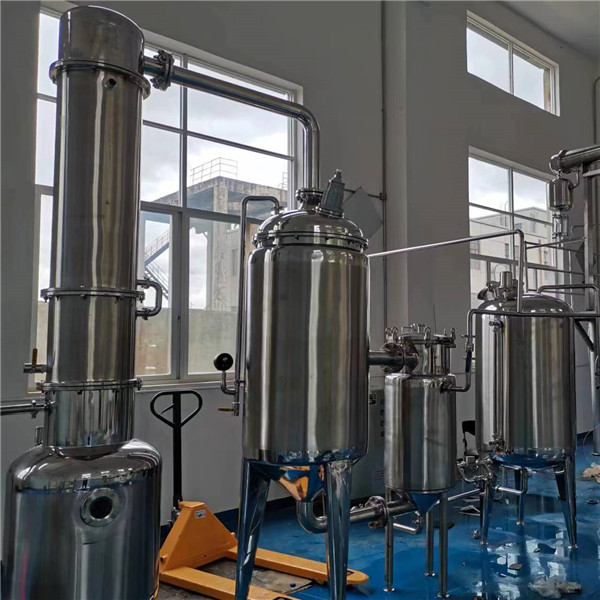

5. Picture
