Volume: 10L,50L, 100L Capacity: 2kg/batch, 10kg/batch, 20kg/batch Distillation method: steam distillation and hydro distillation Application: Grass, flower, branch, root, leaf, wood, gum etc Heating method: Induction cooker for 10L, electric/gas generator for 50L & 100L
1. Product Introduction

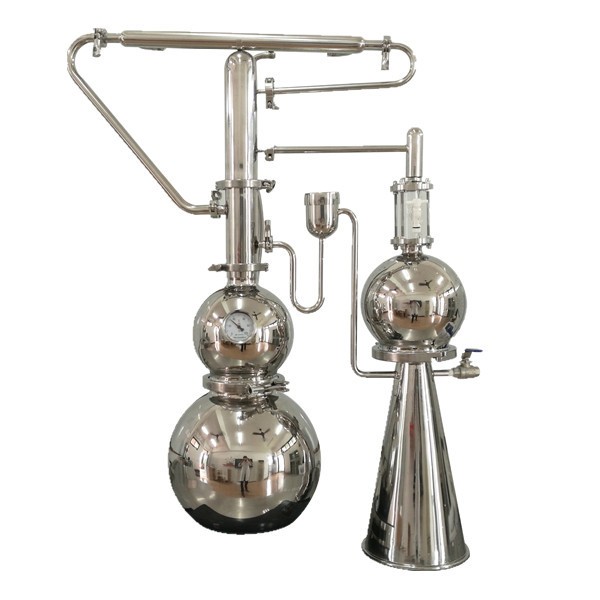

10L gourd distiller is made of distillation kettle, demister, condenser, cooler, oil and water separator, re-distillation device and other related pipelines composition.
It is a professional small lab test distiller, which can distill most of aromatic plants, include some hard materials, such as sandalwood, agarwood etc.
The gourd shape of distillation kettle can improve the oil yield of the aromatic plants.It has full stainless steel type and glass type of condenser tube, it can check the distilling statue and know the oil yield clearly.

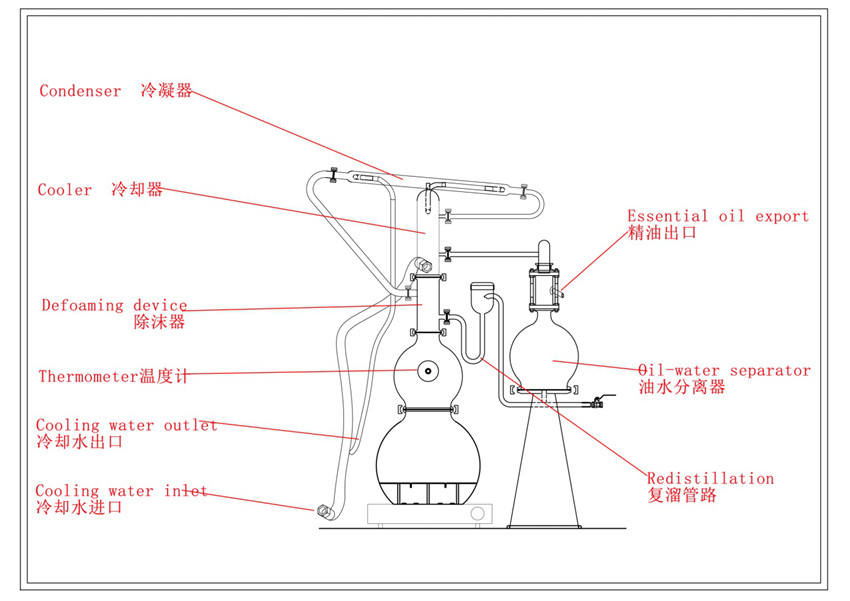

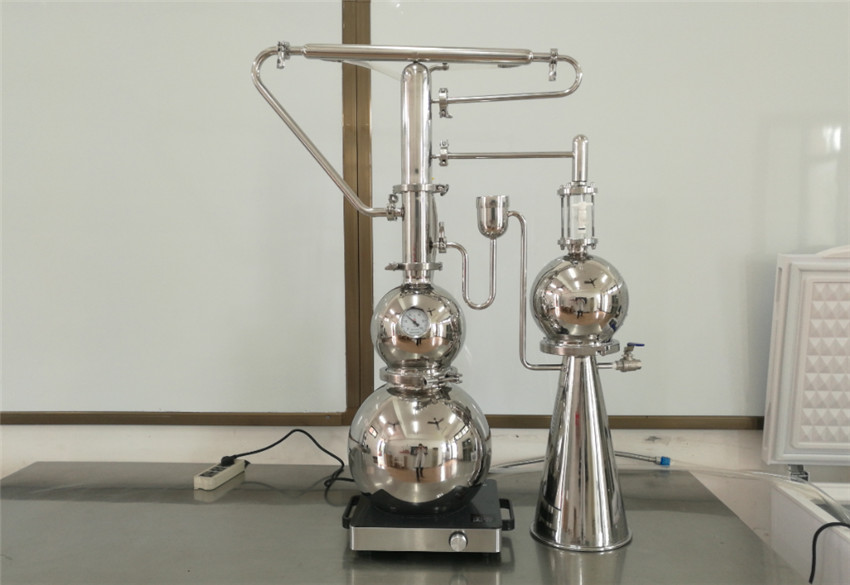

2. Structure & Picture
3. Feature
a. Professional small lab distiller for most of aromatic plants, included sandalwood, agarwood etc
b. High oil yield with re-distillation pipeline
c. Easy operation
d. Equipped thermometer, can read the temperature inside
e. Equipped condenser & cooler
f. Full stainless steel or glass type of condenser type can be chosen.
4. Application
