Tubular Centrifuge Separation Equipment

Model: 45,75,105,125,150
Function: liquid-liquid separation, liquid-solid separation, liquid-liquid-solid separation
Application: animal oil, vegetable oil extraction

Product Description:

1. Product introduction

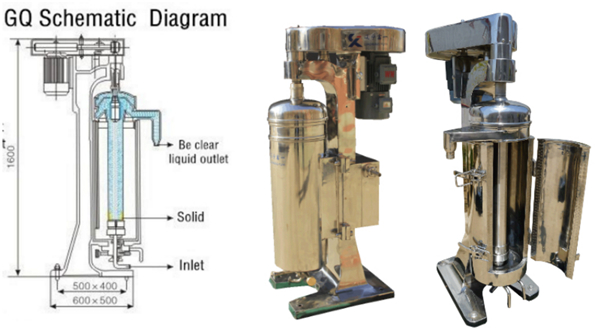

GQ clarification type

tube centrifuge.jpg

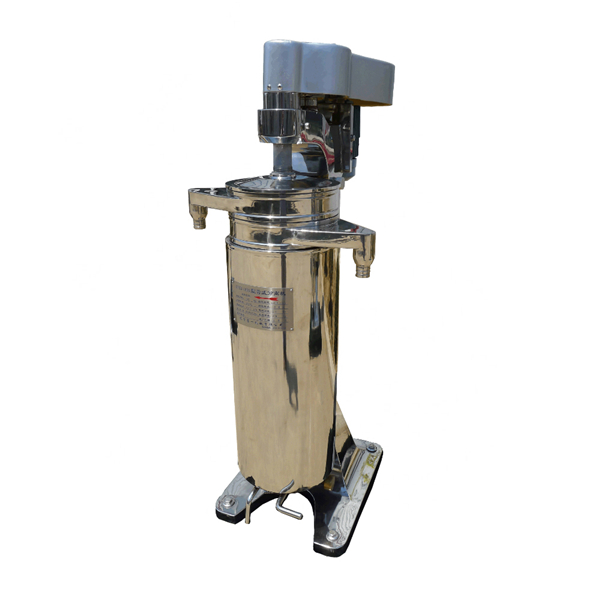

GQLB Series Tubular Separator is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, fine particles and very small differential gravity of the two phases,it is suitable for solid content lower 2%. Because tubular separator is manual discharging machine.

GQ clarify type . GQ45 is our smallest model machine . It is suitable for lab test .

The other model is GQ75, GQ105 ,GQ125,GQ150 .

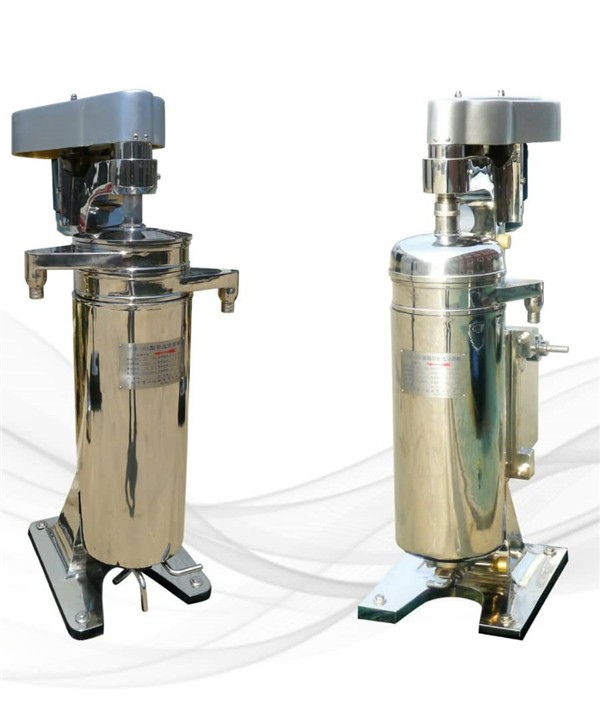

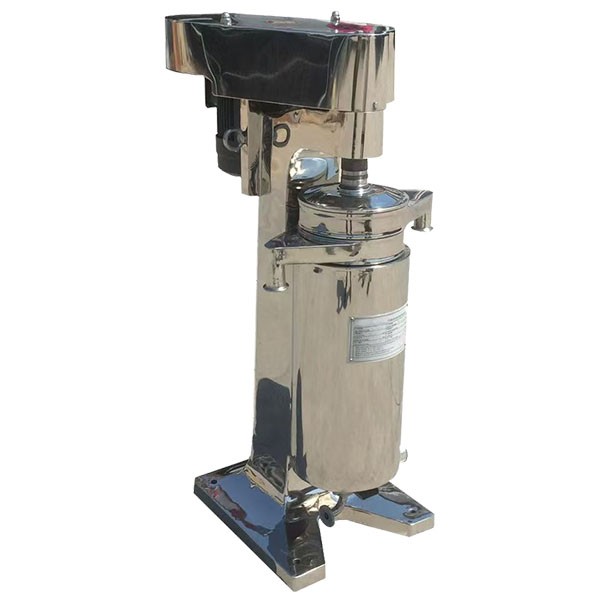

For easy operation , FUYI GQ type tubular separator have front door open type ,machine body swing type and normal type .

For different material and requirements our machine have Cooling type, Airtight explosion proof,Nitrogen protection and Steam sterilization.

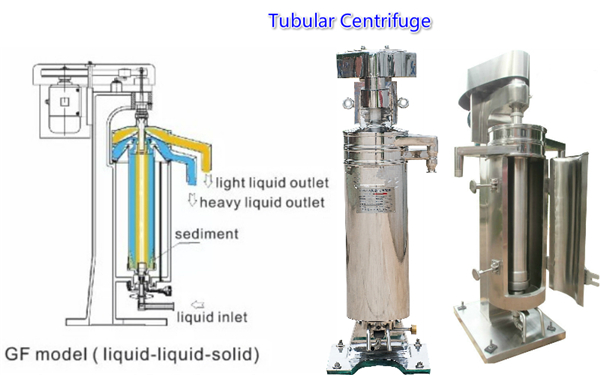

GF separation type

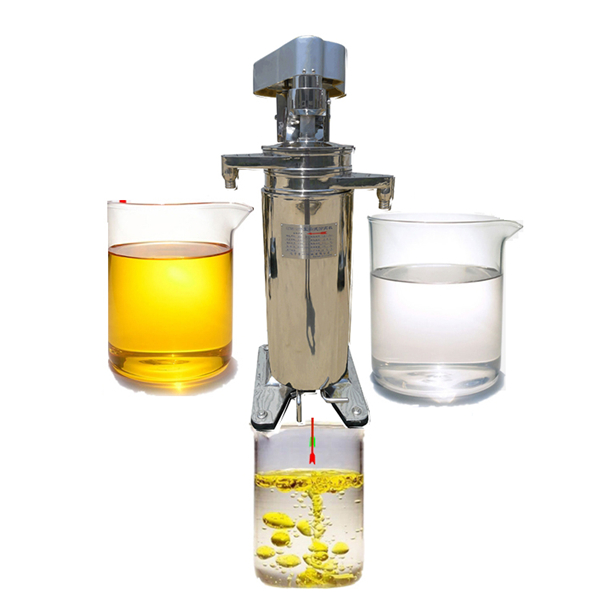

GFLB Series Tubular Separator is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of oil-water-solid separation. GF type tubular separator can separate liquid-liquid, liquid-liquid-solid separation.

tube centrifuge 2.jpg

In many animal oil,vegetable oil extraction plant. GF type tubular separator is necessary machine.

For oil-water separation process, GF type tubular separator have perfect separation effect.

But as it is manual discharging machine , so the capacity from 10-500 L per hour . Depend on the Situation of your material.

2. Technical parameters

Model	Bowl						Power	Dimension (mm)	Weight (kg)
Model	Inner Dia(mm)	Height(mm)	Sedimentation Volume (L)	Max Speed (r/min)	Inlet Nozzle Dia(mm)	Water Through Capacity (L/h)	Power	Dimension (mm)	Weight (kg)
GQ/GF45	45	240	0.4	10000-28000	2/2.5/3	100	0.4	500420760	90kg
GQ/GF75	75	450	2.2	20000	3/5	100-600	1.5	7604501120	300kg
GQ/GF105	105	730	6	16300-19000	6/8/10	1200	2.2/3	8405001600	550kg
GQ/GF125	125	730	8	15000	6/8/10	1500	3/4	9005501600	630kg
GQ150	142	730	10	14000	6/8/10	2500	3/4	10206001600	660kg

Notice:

1.The voltage of motor depend on customer. Normally is 380V 50HZ 3 Phase.

2.The actual process capacity of machine depend on material you want to treat . The lower solid content , more liquid you can treat.

3.Because different type ( swing type, front door open type, normal type ) the weight of machine is a little different .Meanwhile , different type and different requirements, the price of machine is different.

4.If you need, tubular bowl separator can controlled by frequency conversation control cabinet.

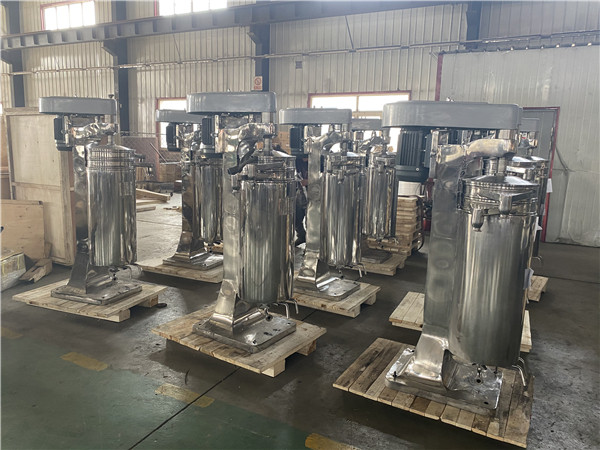

3. Picture
