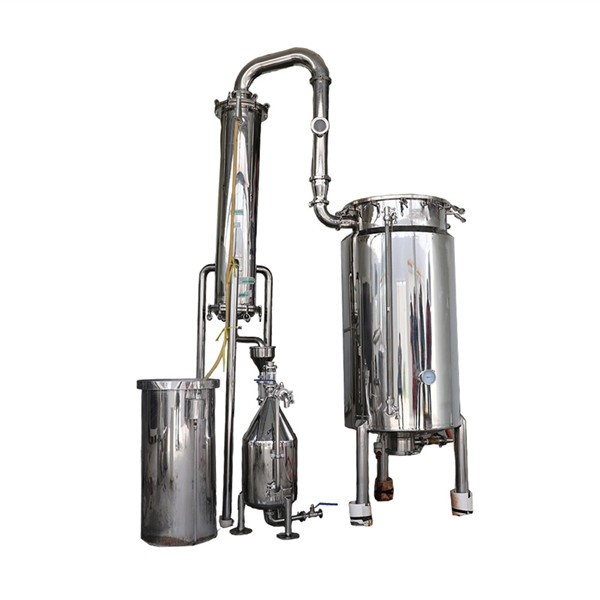

300L Essential Oil Distiller

Volume: 300L
Capacity: 50-60kg/batch
Steam quantity:25kg/h
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel etc

Product Description:

1. Production introduction

We have different structure of 100L-300L essential oil distillation machine, basket materials structure, side discharge structure, gourd shape structure etc, which can be chosen according to your raw materials characteristic.

It consists of distillation kettle, condenser, oil-water separator, electrical steam boiler, and other related pipelines composition.

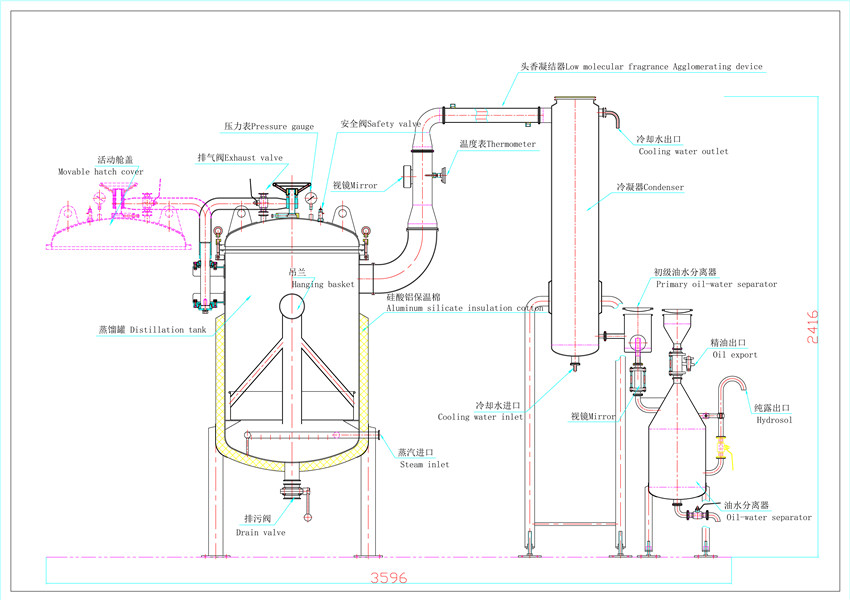

2. Structure & Picture


7.1.3 200L distillation machine  (1).jpg



3. Technical parameter

Item/Model

SD-100L

SD-200L

SD-300L

Distillation kettle volume

100L

200L

300L

Capacity

15-20kg/batch

30-40kg/batch

50-60kg/batch

Working pressure

Atmospheric

Working temperature

95-105℃

Energy-saving insulation

Outer material δ=2mm/SUS304; Insulation:aluminum silicate, thickness 50mm

Heating area

0.6

0.8㎡

1.1㎡

Condensing area

1.7㎡

2.4㎡

3.0㎡

Cooling area

Condenser working pressure

0.25Mpa

0.25Mpa

0.25Mpa

Condenser inlet water temperature

<25℃

Distillation method

According to the material characteristics, to choose the steam distillation or hydro distillation

Heating method

Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Feed port caliber

300mm

300mm

350mm

Slag discharge caliber

Customized according to different distillation methods and material characteristics

Steam quantity

12kg/h

20kg/h

25kg/h

Water consumption

1.5T/h

2T/h

2T/h



4. Feature

a. Full 304 stainless steel, durable and easy to clean

b. Vertical condensation, good condensation effect, no water residue

c. Equipped with oil-water separator, easy to separate and collect the essential oil and hydrosol.

d. Artificial mechanics,easy to discharge

e. Independent steam generator included, can use different heating source, electric or gas.


5. Application

aromatic plant 3.jpg
