500L Essential Oil Distiller

Volume: 500L
Capacity: 100kg/batch
Steam quantity:50kg/h
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Product Description:

1. Product introduction

We have different structure of 500L-1000L essential oil distillation machine, according to raw materials characteristic and distillation method, which can choose different discharge method, bottom pneumatic slag discharge, manual butterfly valve slag discharge valve; and we have vertical condensation or horizontal condensation for you to choose.

For distilling rose, up to 500L distiller, which can extract the rose oil and rose water, under 500L distiller, which can get the rose water only.

it consists of distillation kettle, top notes condensation collector, hydrolat collection tank, discharge valve, oil-water separator, steam boiler and other related pipelines composition

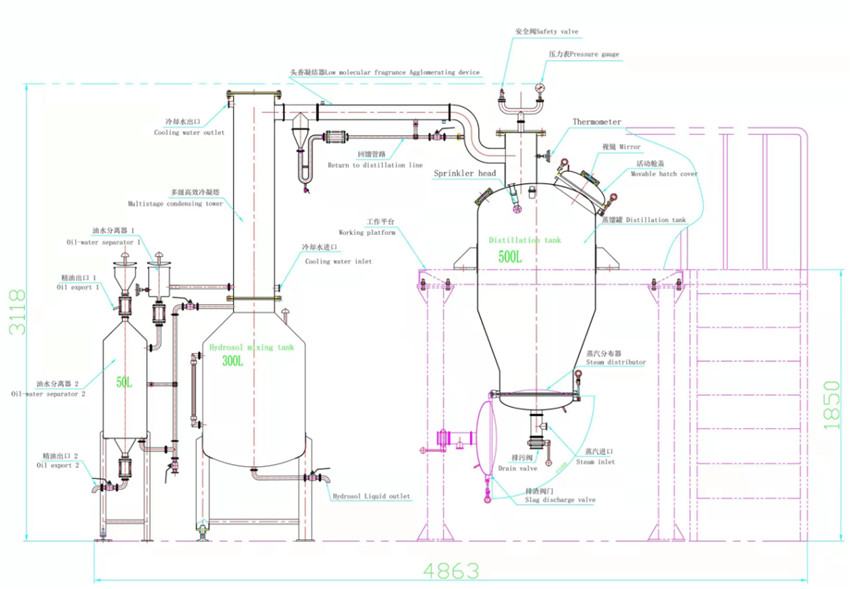

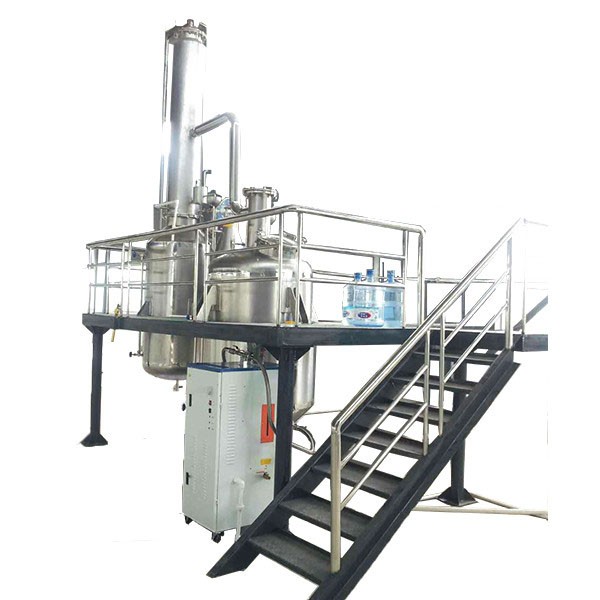

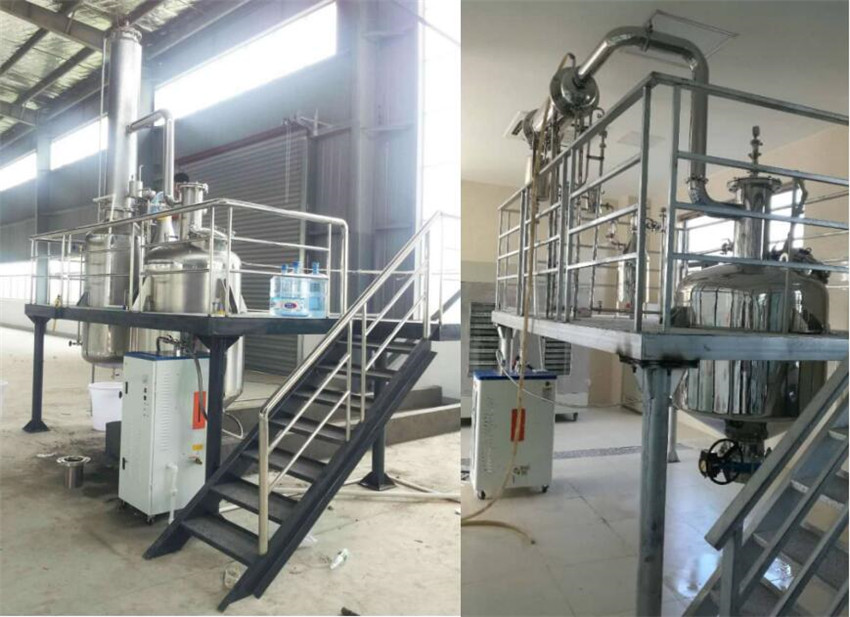

2. Structure & Picture

3. Technical parameter

Item/Model	SD-500L	SD-1000L
Distillation kettle volume	500L	1000L
Capacity	100kg/batch	200kg/batch
Working pressure	Atmospheric
Working temperature	95-105℃
Energy-saving insulation	Outer material δ=2mm/SUS304; Insulation:aluminum silicate, thickness 50mm
Heating area	3㎡	3.8㎡
Condensing area	3㎡	5㎡
Cooling area	3㎡	5㎡
Condenser working pressure	0.25Mpa	0.25Mpa
Condenser inlet water temperature	<25℃
Distillation method	According to the material characteristics, to choose the steam distillation or hydro distillation
Heating method	Electricty, solar energy, firewood, coal, fuel oil, gas, biomass fuel
Feed port caliber	400mm	400mm
Slag discharge caliber	Customized according to different distillation methods and material characteristics
Steam quantity	50kg/h	100kg/h
Water consumption	2.1T/h	2.1T/h

4. Feature

a. it adopt three-dimensional steam distributor, materials are heated more evenly.

b. Equipped the latest technology of top notes collector, it can condense and collect the head aroma components ( low molecular components) of volatile oil , and make the aroma of essential oil richer and full.

c. Our condensation tower adopt high efficiency vertical condensing , which is Europe condensing technology, better condensing effect with tube condenser + plate condenser + coil Cooler and no water residue in the pipeline.

d. Equipped hydrolat collection tank, the hydrosol as by-product has economic benefit

e. Discharge method can be chosen according to raw materials characteristic and distillation method

f. Re-distillation pipeline can be added according to customer's request.

g. Support the equipment customized

5. Application

aromatic plants list.jpg
