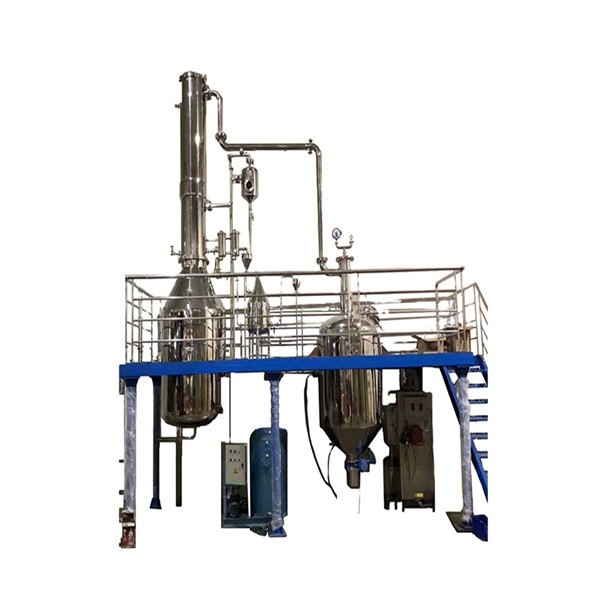

1000L Essential Oil Distiller

Volume: 1000L
Capacity: 200kg/batch
Steam quantity:100kg/h
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Product Description:

1. Production introduction

We have different structure of 500L-1000L essential oil distillation machine, according to raw materials characteristic and distillation method, which can choose different discharge method, bottom pneumatic slag discharge, manual butterfly valve slag discharge valve; and we have vertical condensation or horizontal condensation for you to choose.

For distilling rose, up to 500L distiller, which can extract the rose oil and rose water, under 500L distiller, which can get the rose water only.

it consists of distillation kettle, top notes condensation collector, hydrolat collection tank, discharge valve, oil-water separator, steam boiler and other related pipelines composition



2. Structure & Picture

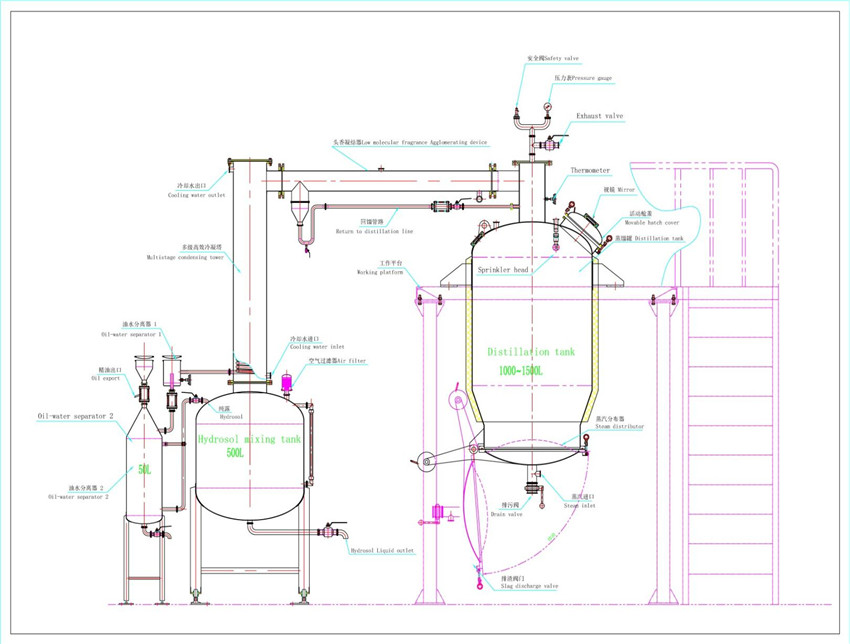

1000L structure.jpg

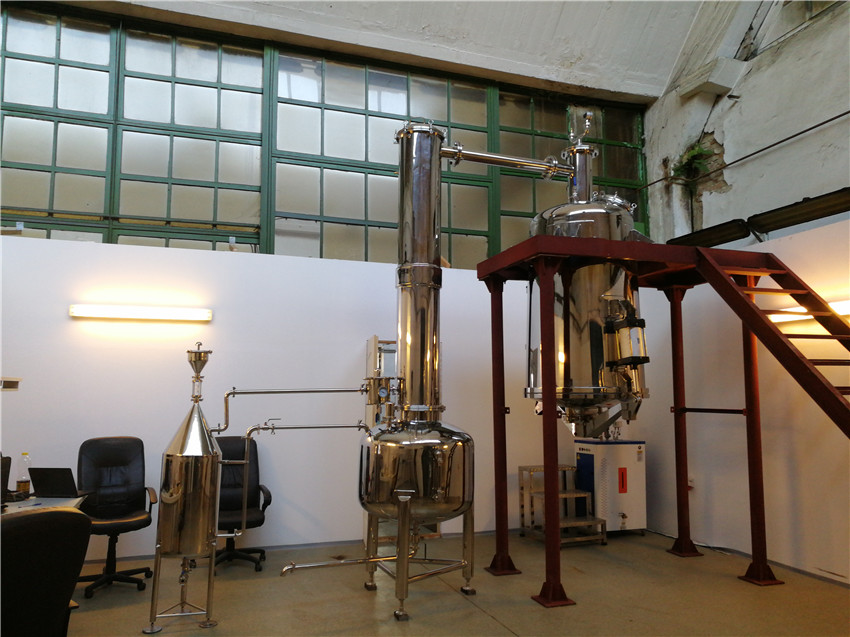

1000L distiller.jpg


3. Technical parameter

Item/Model

SD-500L

SD-1000L

Distillation kettle volume

500L

1000L

Capacity

100kg/batch

200kg/batch

Working pressure

Atmospheric

Working temperature

95-105℃

Energy-saving insulation

Outer material δ=2mm/SUS304; Insulation:aluminum silicate, thickness 50mm

Heating area

3㎡

3.8㎡

Condensing area

3㎡

5㎡

Cooling area

Condenser working pressure

0.25Mpa

0.25Mpa

Condenser inlet water temperature

<25℃

Distillation method

According to the material characteristics, to choose the steam distillation or hydro distillation

Heating method

Electricty, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Feed port caliber

400mm

400mm

Slag discharge caliber

Customized according to different distillation methods and material characteristics

Steam quantity

50kg/h

100kg/h

Water consumption

2.1T/h

2.1T/h



4. Feature

a. it adopt three-dimensional steam distributor, materials are heated more evenly.

b. Equipped the latest technology of  top notes collector, it can condense and collect the head aroma components ( low molecular components) of volatile oil , and make the aroma of essential oil richer and full.

c. Our condensation tower adopt high efficiency vertical condensing , which is Europe condensing technology, better condensing effect with tube condenser + plate condenser + coil Cooler and no water residue in the pipeline.

d. Equipped hydrolat collection tank, the hydrosol as by-product has economic benefit

e. Discharge method can be chosen according to raw materials characteristic and distillation method

f. Re-distillation pipeline can be added according to customer's request.

g. Support the equipment customized



5. Application

aromatic plants list.jpg
