Product


Mixing Equipment

Capacity: 50-5000L
Jacket: Single layer, double jacket, three-layer
Material: SS304 / 316L Stainless steel
Application: medicine, chemical industry, food industry, light industry

Product Description:

1. Product introduction

Mixing equipment is one of the typical reactive equipment in chemical, pharmaceutical and foodstuff industries. It accelerates chemical reaction by mixing two or more types of liquid. or gas materials of certain capacity with stirrer under certain pressure and temperature. It is often accompanied by heat effect. The heat required is input or exhausted by heat-exchanging device.

The equipment mainly consists of tank, jacket and stirring system. The stirring type is mostly gate type, ensuring materials fully mixed within short time; The sealing type is mostly gate type. keeping pressure in tank and preventing materials in tank from leaking and resulting in unnecessary pollution. The parts in contact with material are made of 304 or 316L stainless steel in conformity with sanitary standard.

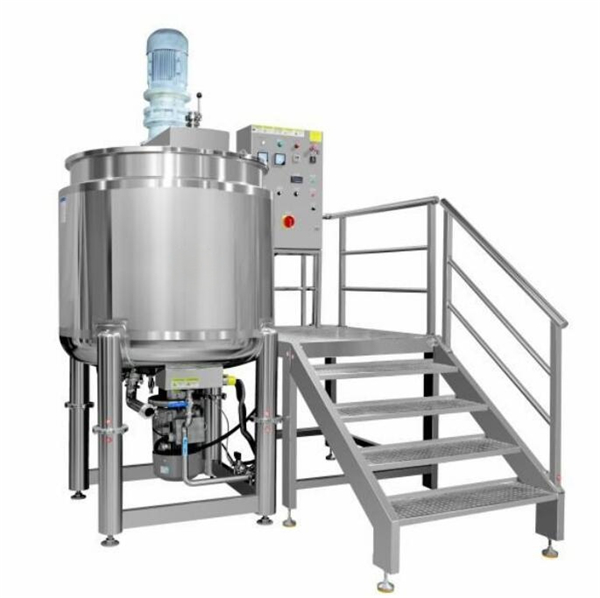

mixing equipment (4).jpg

2. Technical parameter

Volume

Motor power

Tank diameter

Tank height

Rotating
speed

Outlet diameter

Outlet height

Heat power

100L

0.75kw

550mm

663mm

40r/min

DN25

400mm

6kw

200L

0.75kw

650mm

798mm

40r/min

DN25

400mm

6kw

300L

0.75kw

750mm

823mm

40r/min

DN32

400mm

9kw

500L

1.1kw

900mm

1000mm

40r/min

DN40

400mm

12kw

800L

1.1kw

1000mm

1275mm

40r/min

DN40

400mm

12kw

1000L

1.5kw

1100mm

1300mm

40r/min

DN40

400mm

18kw

1500L

1.5kw

1300mm

1350mm

40r/min

DN40

400mm

18kw

2000L

2.2kw

1500mm

1400mm

40r/min

DN50

400mm

24kw

3000L

3kw

1600mm

1645mm

40r/min

DN50

400mm

36kw

4000L

4kw

1800mm

1695mm

40r/min

DN50

400mm

36kw

5000L

5.5kw

1900mm

2025mm

40r/min

DN50

400mm

54kw



3. Feature

Material

SS304 / 316L(Stainless steel).

Capacity

50-5000L (customized is accepted).

Jacket

Single layer, double jacket, three-layer.

Thickness

2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure).

Head

Open cover, seal with manhole/handhole etc.

Shape

Cylinder or cone, conical /flat/elliptical bottom with discharge.

Heat Method

Steam, electricity.



4. Application

Agitating reactor is mainly applicable to the production steps such as hydrolysis, neutralization, crystal, distillation, and storing etc in the industries of medicine (materials workshop, synthesizing workshop), chemical industry, food, light industry etc.


5. Picture

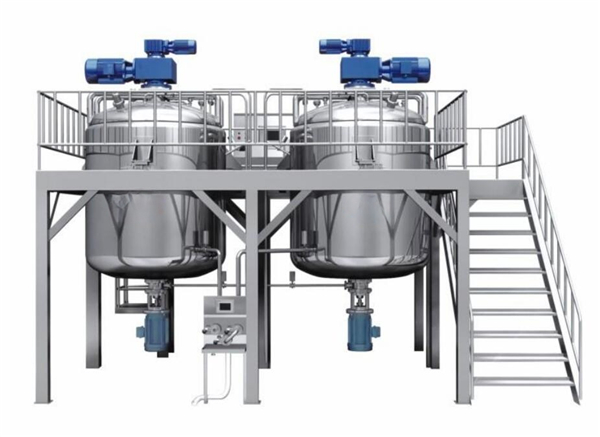

mixing equipment (2).jpg

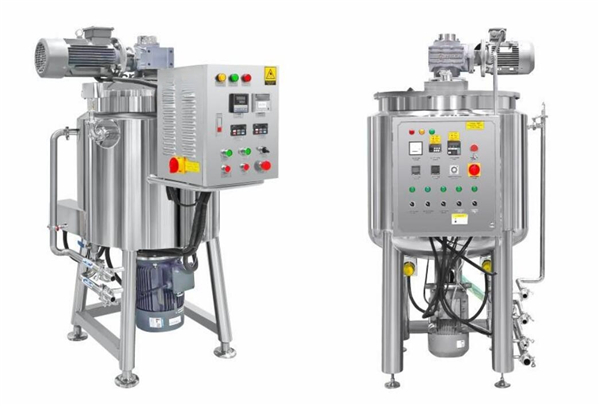

mixing equipment (6).jpg
