Medicine Extraction Equipment

1. Product Introduction

Extraction equipment is a device used to extract and concentrate useful ingredients from a liquid mixture or solution. They play an important role in a variety of industrial and laboratory applications, including:

Extraction of useful components: Concentrated extraction equipment is capable of extracting target components from the original mixture. These ingredients can be chemicals, natural products, pharmaceuticals, fragrances, pigments, etc.

Separating impurities: They can help separate useful ingredients from other impurities or unwanted substances, thereby increasing purity.

Concentrated solutions: Concentrated extraction equipment can concentrate the useful components in a solution to a higher concentration for further processing or storage.

Separating liquids and solids: In some cases, concentrated extraction equipment can be used to separate liquid and solid components, such as extracting oils or resins from plant material.

Laboratory Research: In scientific research and laboratory applications, concentration extraction equipment is often used to extract and concentrate specific molecules or compounds from samples for further analysis and testing.

Industrial production: In the industrial field, concentration extraction equipment is usually used in large-scale production, such as in pharmaceuticals, food and beverages, chemical industry, etc., to extract and separate various ingredients.

2. Feature

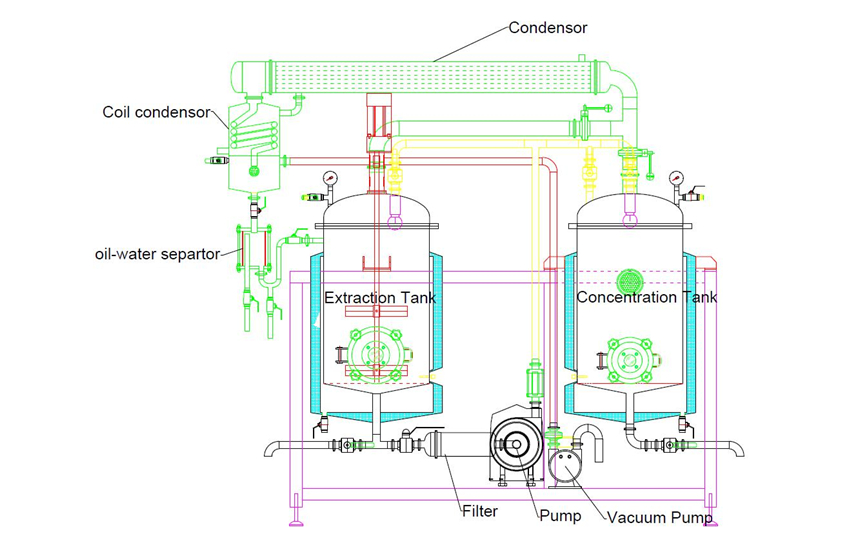

a. This equipment Shanghai manufacturer extraction machinery herbal plant extract machine has excellent manufacture,complete collocation, simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.

b.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumference,low temperature circumference,low temperature concentration and essential oil collection etc.

c.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is especially suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

d.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.

3. Technical parameter

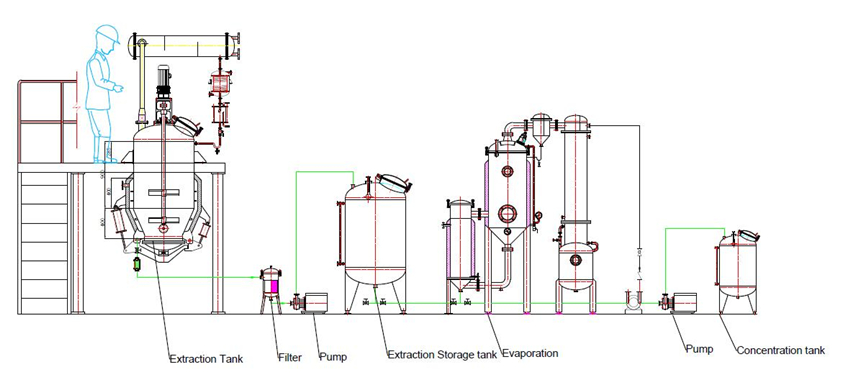

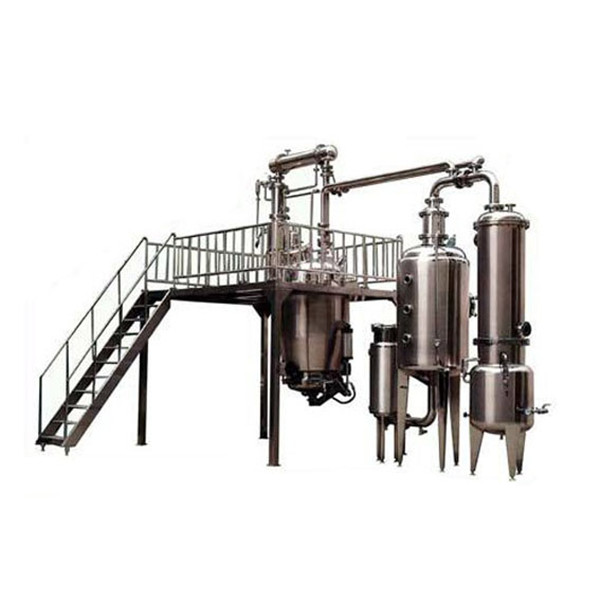

4. Picture
