500L Mixing Equipment

Capacity: 50-5000L
Jacket: Single layer, double jacket, three-layer
Material: SS304 / 316L Stainless steel
Application: medicine, chemical industry, food industry, light industry

Product Description:

1. Product introduction

Mixing equipment is one of the typical reactive equipment in chemical, pharmaceutical and foodstuff industries. It accelerates chemical reaction by mixing two or more types of liquid. or gas materials of certain capacity with stirrer under certain pressure and temperature. It is often accompanied by heat effect. The heat required is input or exhausted by heat-exchanging device.

The equipment mainly consists of tank, jacket and stirring system. The stirring type is mostly gate type, ensuring materials fully mixed within short time; The sealing type is mostly gate type. keeping pressure in tank and preventing materials in tank from leaking and resulting in unnecessary pollution. The parts in contact with material are made of 304 or 316L stainless steel in conformity with sanitary standard.

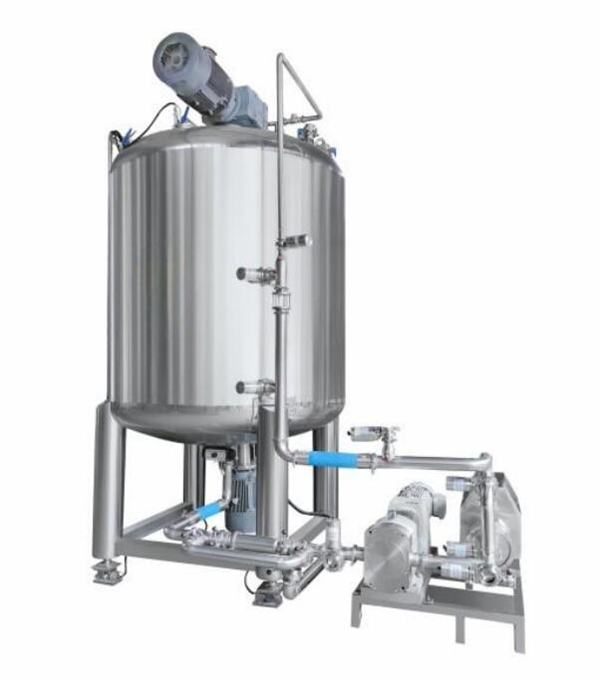

mixing equipment (3).jpg

2. Technical parameter

Volume	Motor power	Tank diameter	Tank height	Rotating speed	Outlet diameter	Outlet height	Heat power
100L	0.75kw	550mm	663mm	40r/min	DN25	400mm	6kw
200L	0.75kw	650mm	798mm	40r/min	DN25	400mm	6kw
300L	0.75kw	750mm	823mm	40r/min	DN32	400mm	9kw
500L	1.1kw	900mm	1000mm	40r/min	DN40	400mm	12kw
800L	1.1kw	1000mm	1275mm	40r/min	DN40	400mm	12kw
1000L	1.5kw	1100mm	1300mm	40r/min	DN40	400mm	18kw
1500L	1.5kw	1300mm	1350mm	40r/min	DN40	400mm	18kw
2000L	2.2kw	1500mm	1400mm	40r/min	DN50	400mm	24kw
3000L	3kw	1600mm	1645mm	40r/min	DN50	400mm	36kw
4000L	4kw	1800mm	1695mm	40r/min	DN50	400mm	36kw
5000L	5.5kw	1900mm	2025mm	40r/min	DN50	400mm	54kw

3. Feature

Material	SS304 / 316L(Stainless steel).
Capacity	50-5000L (customized is accepted).
Jacket	Single layer, double jacket, three-layer.
Thickness	2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure).
Head	Open cover, seal with manhole/handhole etc.
Shape	Cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method	Steam, electricity.

4. Application

Agitating reactor is mainly applicable to the production steps such as hydrolysis, neutralization, crystal, distillation, and storing etc in the industries of medicine (materials workshop, synthesizing workshop), chemical industry, food, light industry etc

5. Picture

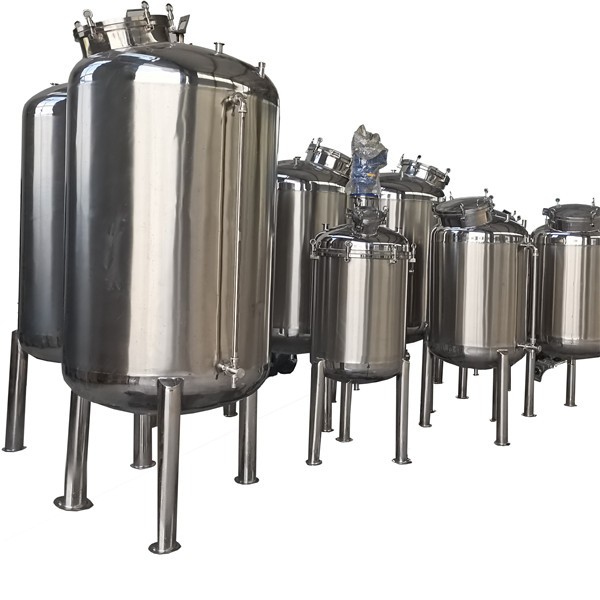

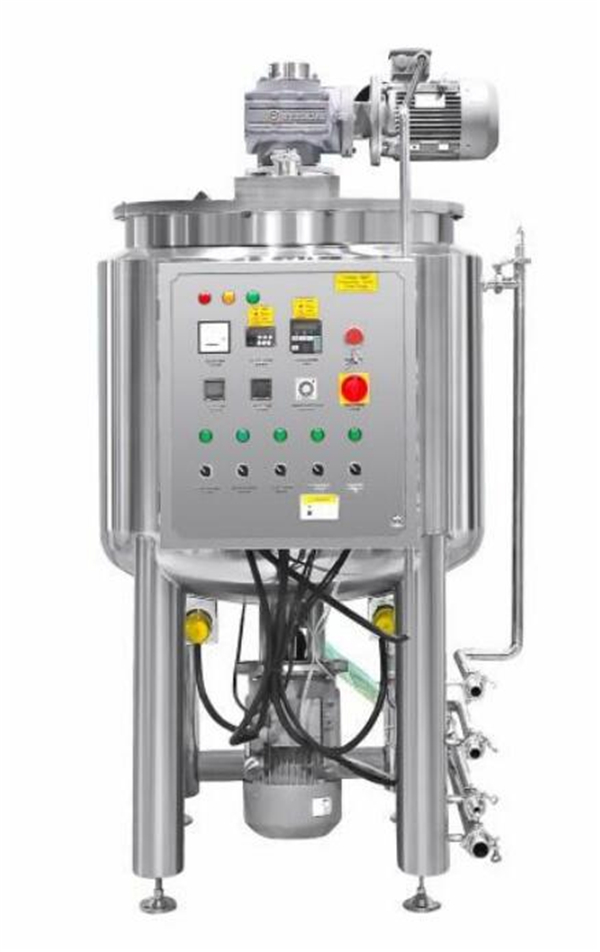

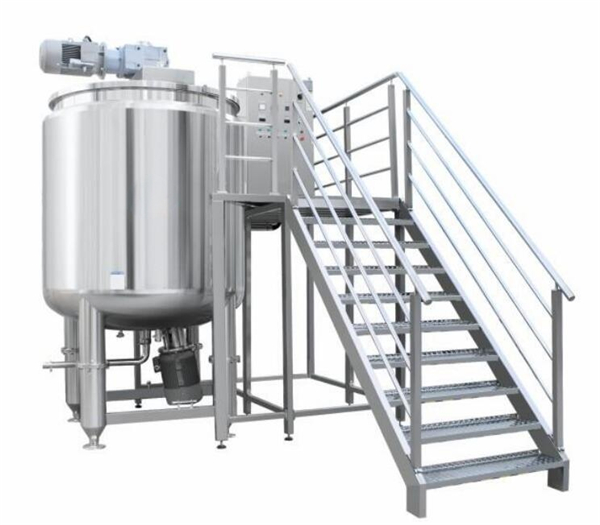

mixing equipment (5).jpg
