Hydraulic Oil Cold Press Machine

Capacity: 8-200kg/h
Voltage: 220V/380V
Application: cocoa liquor, sesame, walnut, almond,
mustard seed, hemp seed, castor seed etc
Materials: contacting part 304 SS

Product Description:

Hydraulic oil press machine uses a hydraulic pump station, which has low speed, high pressure, high temperature resistance and continuous operation. The machine directly adds the fried oil into the barrel to squeeze out the oil. It has a simple and fast process and directly flows out pure, fragrant and unadulterated oil. It is an oil pressing machine for high-oil crops such as sesame, peanuts, walnut kernels, almonds, pine seeds, and tea seeds.

Model

Capacity
(kg/h)

Motor Power
(kw)

Voltage

Packing Size(mm)
LxWxH

Packing Weight
(kg)

Heating Power
(w)

Heating temper.
(℃)

Volume of
cylinder

Dia of
Cake
(mm)

6YZ-150

8-12

1.5

220V/50Hz
single phase

950*700*1000

260

600

50-70

2kg/batch

154

6YZ-180

16-20

1.5

220V/50Hz
single phase

980*800*1250

460

720

50-70

4kg/batch

192

6YZ-230

32-40

1.5

220V/50Hz
single phase

1050*850*1560

860

850

50-70

8kg/batch

242

6YZ-260

44-50

1.5

220V/50Hz
single phase

1200*870*1600

1260

950

50-70

12kg/batch

270

6YZ-320

60-70

2.2

380V/50Hz
triple phase

1280*950*1850

1820

1100

50-70

17.5kg/batch

323

6YZ-360

80-90

2.2

380V/50Hz
triple phase

1350*1050*1880

2100

1250

50-70

22.5kg/batch

370

6YZ-415

90-120

2.2

380V/50Hz
triple phase

1500*1100*1900

2350

1500

50-70

30kg/batch

415

6YZ-460

150-200

2.2

380V/50Hz
triple phase

1600*1200*2200

3100

2000

50-70

50kg/batch

460

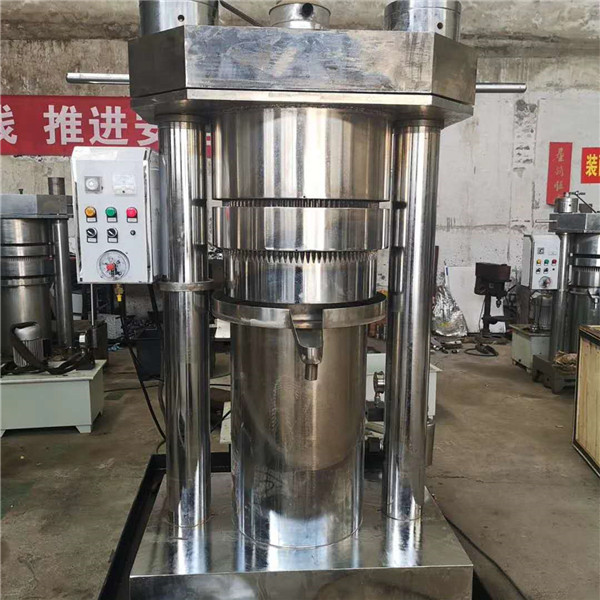

1.hydraulic Oil Cold Press Machine.jpg
