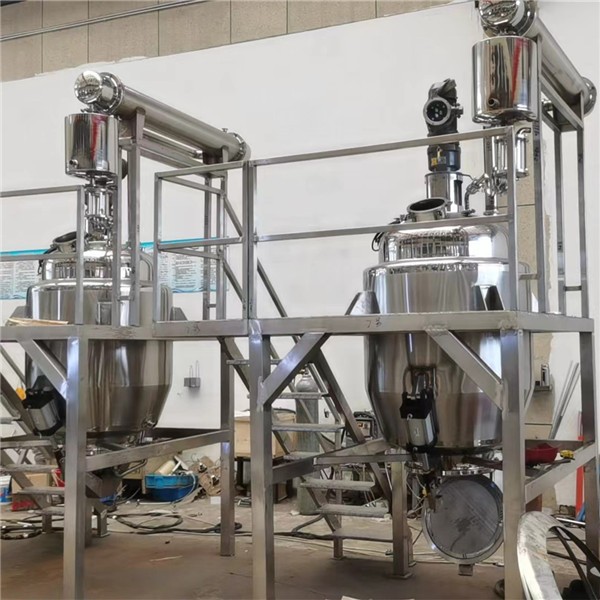

Mint Ginger Hydrosol Distillation Equipment

Put the raw materials into the extraction tank, add 5~10 times the solvent of the raw materials, such as pure water, ethanol, etc. According to the liquid required in the extraction process, open the steam valve of the extraction tank first, and after boiling for a period of time, draw the liquid in the extraction tank into the heater evaporator, open the steam valve of the heater, and heat and evaporate.

1. The tank body is designed as a three-layer structure, with an inner tank, a heating layer, and a thermal insulation layer. It can effectively reduce the problem of heat loss during use, has a long thermal insulation time, good effect, and can effectively reduce the cost of use.

2. The inner wall of the tank is mirror polished, the weld fillet transition, no hanging material, easy to clean, and the outer surface of the tank is matte treated, which meets the GMP pharmaceutical standards.

3. PLC engineering software system, the heating temperature, extraction time, concentration temperature, and concentration time can be set online through the touch screen, and it can also be made into fully automatic control.

4. Multifunctional extraction and concentration: vacuum low-temperature extraction and concentration can be used to effectively reduce the loss of heat-sensitive effective ingredients. The extraction tank is equipped with stirring to make the material fully contact with the solvent and accelerate the precipitation of effective ingredients.

5. Ultrasonic extraction and concentration: Using the cavitation and mechanical action of ultrasound, on the one hand, the cell walls of medicinal materials are effectively broken, so that the effective ingredients are in a free state and integrated into the extraction solvent. On the other hand, it can accelerate the movement of extraction solvent molecules, so that the solvent and the effective ingredients of medicinal materials can quickly contact and merge with each other. It has the advantages of high extraction efficiency, short extraction time, low extraction temperature and wide adaptability.

6. Concentration equipment: According to customer material and process requirements, scraper concentration, falling film concentration, single-effect concentration, etc. can be selected.

7. Optional specifications: 10L, 20L, 30L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L,3000L, 4000L, 5000L, 6000L etc
