3000L Essential Oil Distiller

Volume: 3000L
Capacity: 600kg/batch
Steam quantity:300kg/h
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel

Product Description:

1. Product introduction

We have different structure of 2000L-6000L essential oil distillation machine,such as basket materials structure, Inverted cone etc. According to raw materials characteristic and distillation method, which can choose different discharge method,basket materials slag discharge, bottom pneumatic slag discharge, manual butterfly valve slag discharge valve;

it consists of distillation kettle, top notes condensation collector, hydrolat collection tank, high efficiency condenser tower, discharge valve, oil-water separator, steam boiler and other related pipelines composition

Support equipment customize.

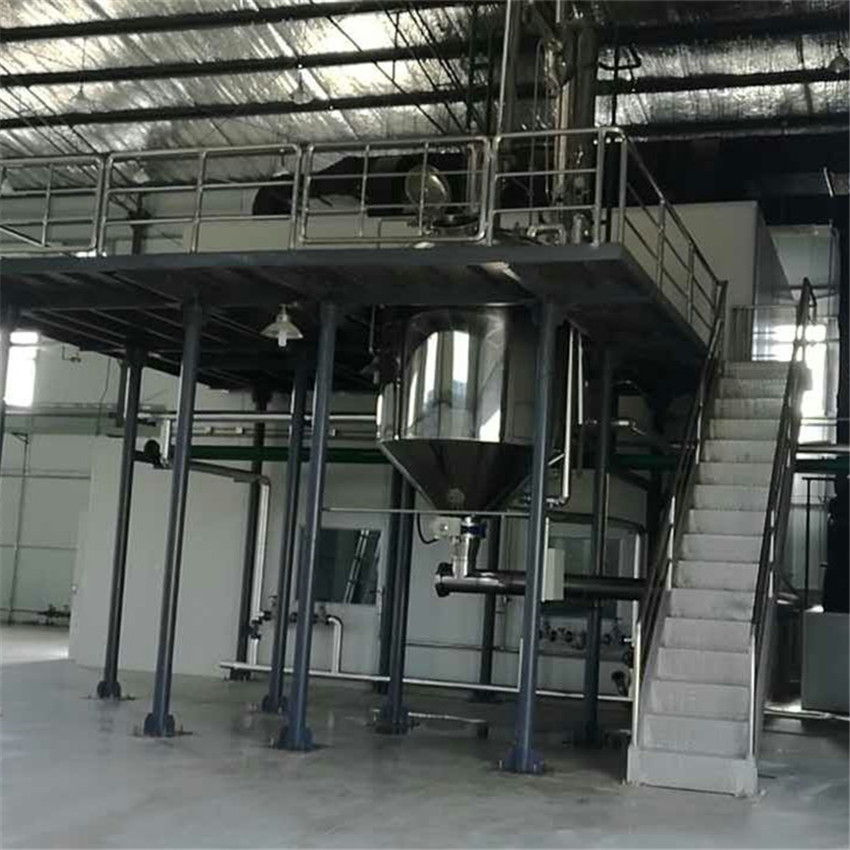

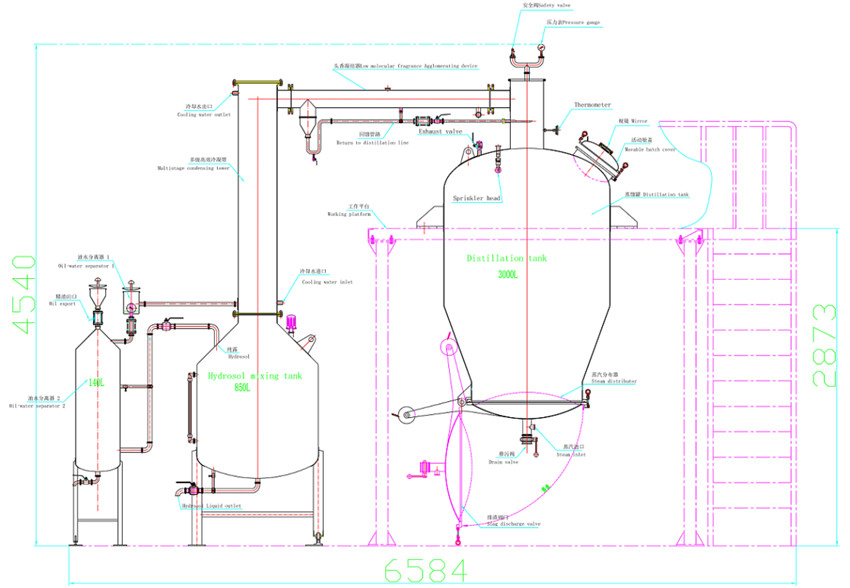

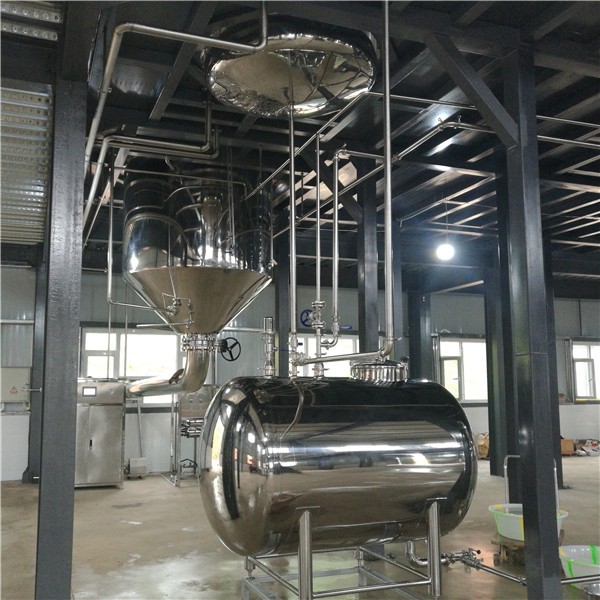

2. Structure & Picture

3. Technical parameter

Item/Model	SD-2000L	SD-3000L	SD-6000L
Distillation kettle volume	2000L	3000L	6000L
Capacity	400kg/batch	600kg/batch	1200kg/batch
Working pressure	Atmospheric
Working temperature	95-105℃
Energy-saving insulation	Outer material δ=2mm/SUS304; Insulation:aluminum silicate, thickness 50mm
Heating area	5㎡	6.8㎡	9.5㎡
Condensing area	6㎡	13㎡	15㎡
Cooling area	6㎡	13㎡	15㎡
Condenser working pressure	0.25Mpa	0.25Mpa	0.25Mpa
Condenser inlet water temperature	<25℃
Distillation method	According to the material characteristics, to choose the steam distillation or hydro distillation
Heating method	Electricty, solar energy, firewood, coal, fuel oil, gas, biomass fuel
Feed port caliber	400mm	400mm	500mm
Slag discharge caliber	Customized according to different distillation methods and material characteristics
Evaporation	200kg/h	300kg/h	600kg/h
Water consumption	3.5T/h	4.2T/h	4.5T/h

4. Feature

a. it adopt three-dimensional steam distributor, materials are heated more evenly.

b. Equipped the latest technology of top notes collector, it can condense and collect the head aroma components ( low molecular components) of volatile oil , and make the aroma of essential oil richer and full.

c. Our condensation tower adopt high efficiency vertical condensing , which is Europe condensing technology, better condensing effect with tube condenser + plate condenser + coil Cooler and no water residue in the pipeline.

d. Equipped hydrolat collection tank, the hydrosol as by-product has economic benefit.

e. Discharge method can be chosen according to raw materials characteristic and distillation method.

f. Re-distillation pipeline can be added according to customer's request.

g. Support the equipment customized.

5. Application

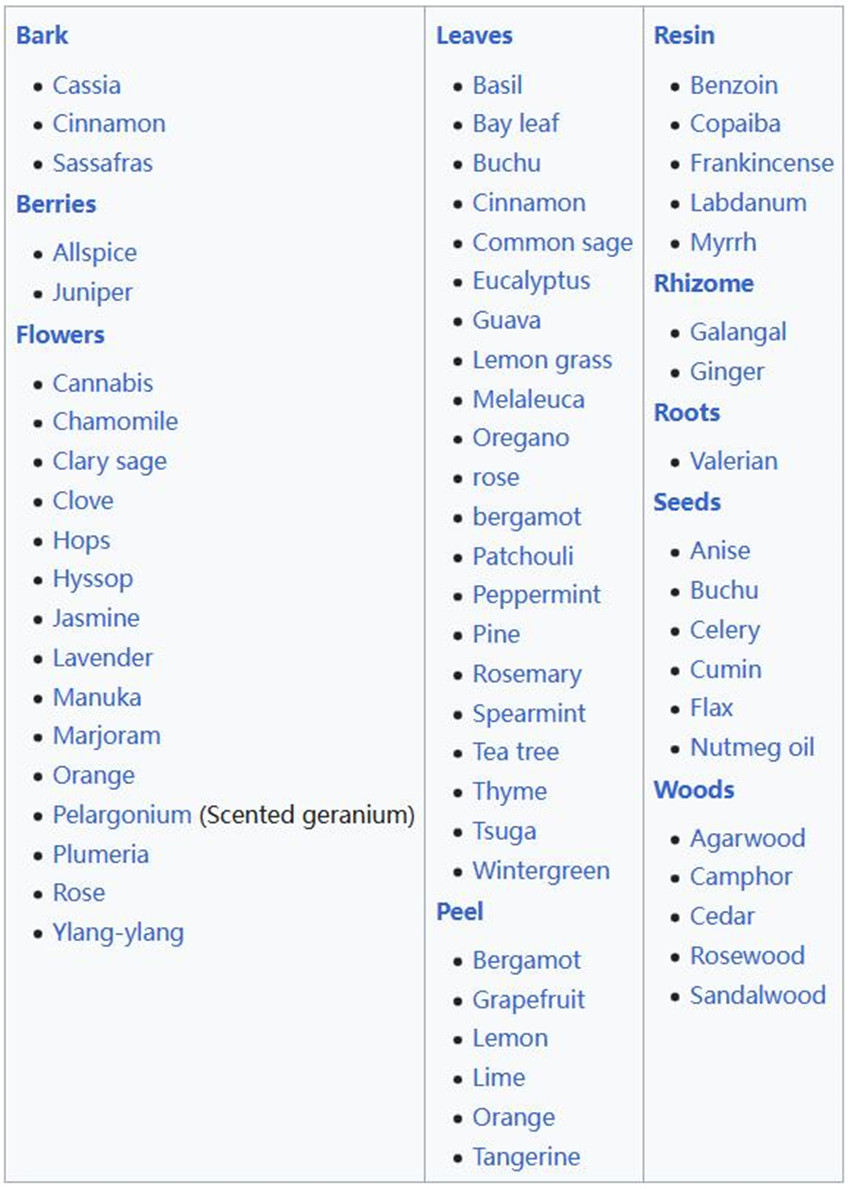

aromatic plants list 3.jpg
