Disc Centrifuge Equipment

1. Product introduction

Disk stack centrifuges are high-speed centrifuges for the mechanical separation and clarification of

mixtures comprising solids and liquids. These machines can be used in a wide range of applications.

Due to their special design, disk stack centrifuges work at a higher rotation speed than other centrifuges

such as decanters. As a result, the centrifugal acceleration (g-force) generated by a disk stack centrifuge

is significantly more powerful than in decanter centrifuges. Moreover, the disks included provide a large

clarifying area. Thus, it is possible to separate ultra fine solid particles from a liquid and to separate

liquid mixtures in an efficient way.

2. Application

Oil: Clarification and Separation for Vegetable Oil, Animal Oil, Fish Oil, Crude Oil, all kinds of fuel oil

Food: Juice Clarification, Beer Separation, milk ,Fermented liquid Clarification and Separation.

Pharmaceutical Industry: Extraction for Vaccine, Mycelium, Glucose, Insulin, Antibiotics, Vitamins.

Chemical Industry: Recovery for Dry cleaner solvents, Galvanized liquid, Aluminum sulfate solution,

Tar water mixture, PVC, Polypropylene, Argentum (In the film processing), Catalyst and Magnet.

Traditional Chinese medicine: Clarification and Separation for Plant Extraction

3. Feature

• Full automation possible with PLC automatic control panel.

• Centrifugal separation requiring no filter media.

• High reliability drive train system backed by delivery of over 1,000 units a year.

• Bowl design with superior separation performance and with good response to discharge loads.

• Pilot valve regulates total/partial discharge of solids.

• Super partial discharge (option) minimizes liquid loss and maximizes thickening of solid

• fraction for discharge.

• Vibration-proof design realizes long working life.

4. Technical Parameter

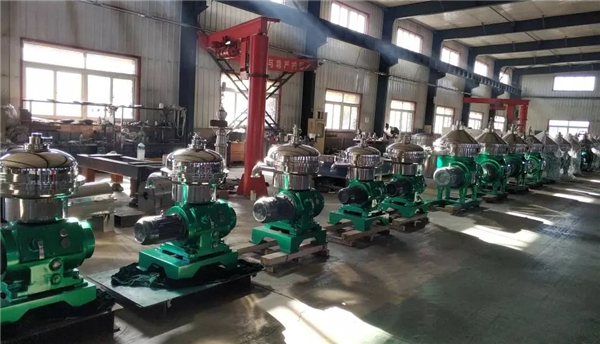

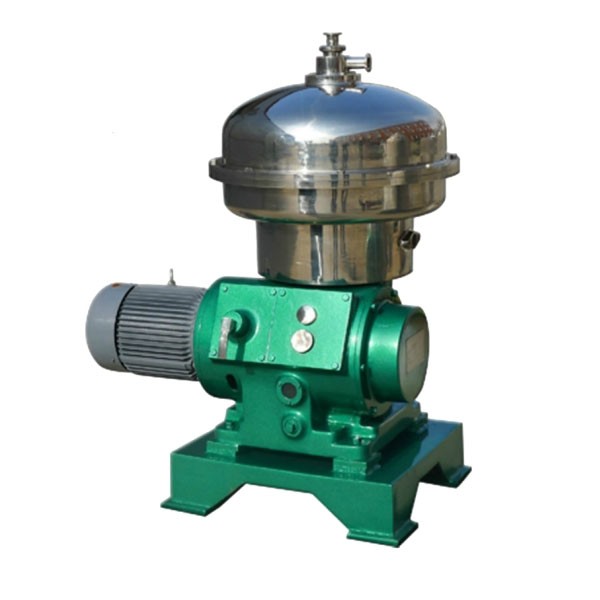

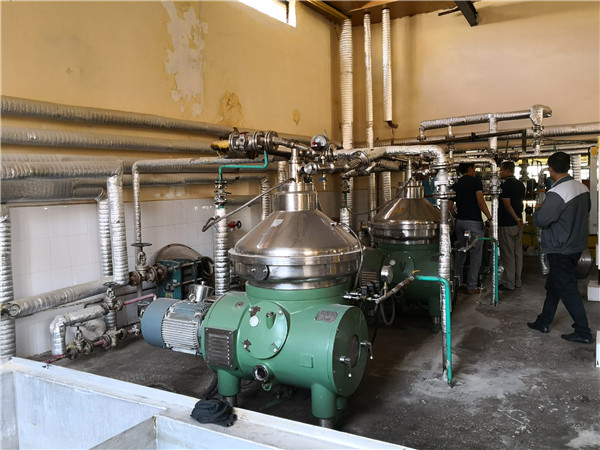

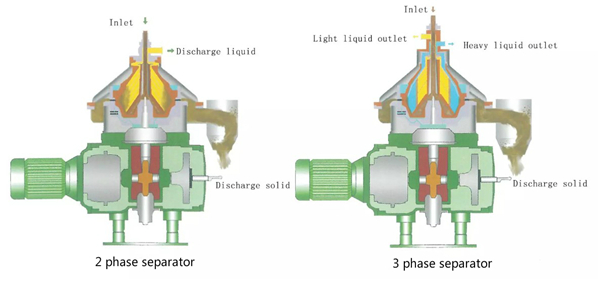

5. Picture
