Model: PTD25,45,65,85,115 Function: Extraction and Separation Application: ethanol extraction, hemp extraction etc
1. Product introduction

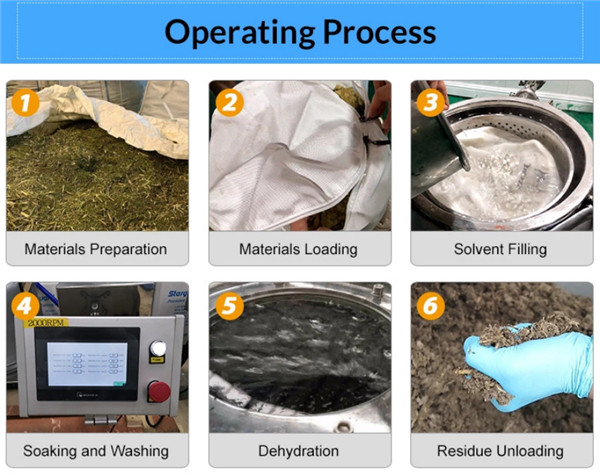

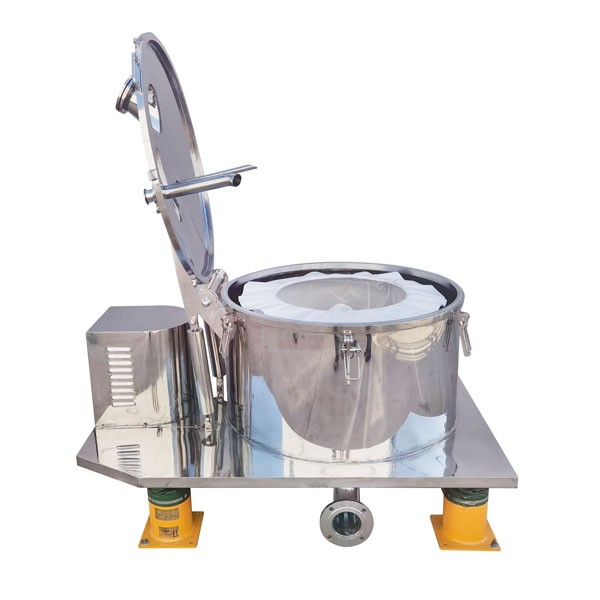

The PTD centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding
pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter
medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine
is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation
as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
2. Feature

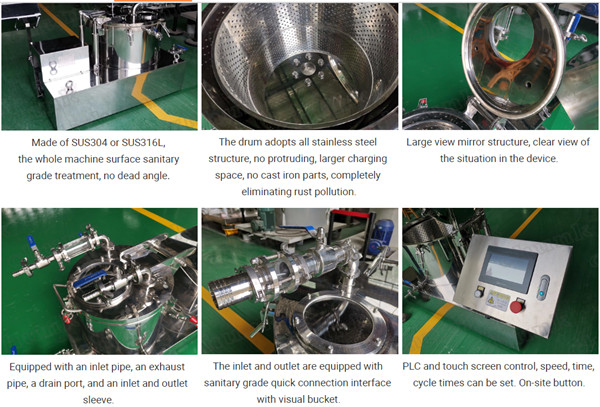

·304 and 316L Sanitary Stainless Steel Construction
·Low temperature rating: -40c

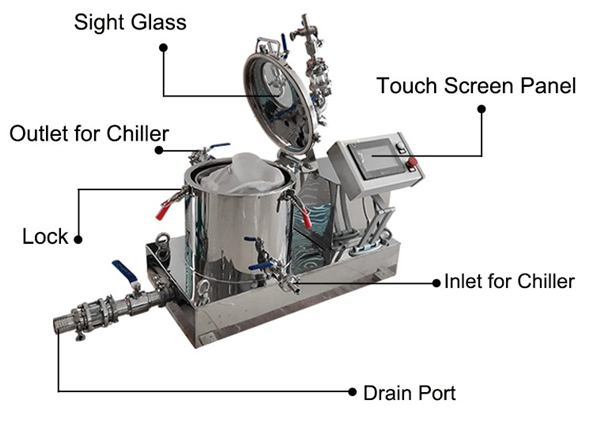

·Reinforced Sight Glass
·Bi-Directional Agitation
·Auto/Manual Controls
·Digital HMI Interface
·Variable Speed Control
·Easy Material Loading/ Unloading
·Heavy-Duty Spin Drying
·No foundation required
3. Technical parameters
Model | Drum diameter mm | Drum height | Revolving speed | Motor Power | Size | Weight |
(mm) | (r/min) | (KW) | (mm) | (KG) | ||
PTD25 | 300 | 350 | 2000 | 1.5 | 1100*650*1020 | 260 |
PTD45 | 450 | 300 | 1500 | 2.2 | 1400*700*1080 | 380 |
PTD65 | 450 | 400 | 1500 | 3 | 1400*850*1080 | 410 |
PTD85 | 600 | 500 | 1250 | 4 | 1600*1060*1250 | 800 |
PTD115 | 600 | 550 | 1250 | 5.5 | 1600*1060*1330 | 820 |
PTD25 Charge per batch around 8Kg(18 pound)
Amount of ethanol each time around 40L(11 gallon)
PTD45 Charge per batch around 14kg(30pound)
Amount of ethanol each time around 85L(23 gallon)
PTD60 Charge per batch around 20kg(45pound)
Amount of ethanol each time around 105L(28 gallon)
PTD85 Charge per batch around 25kg(55pound)
Amount of ethanol each time around 140L(37 gallon)
PTD145 Charge per batch around 45kg(100pound)
Amount of ethanol each time around 250L (56 gallon)

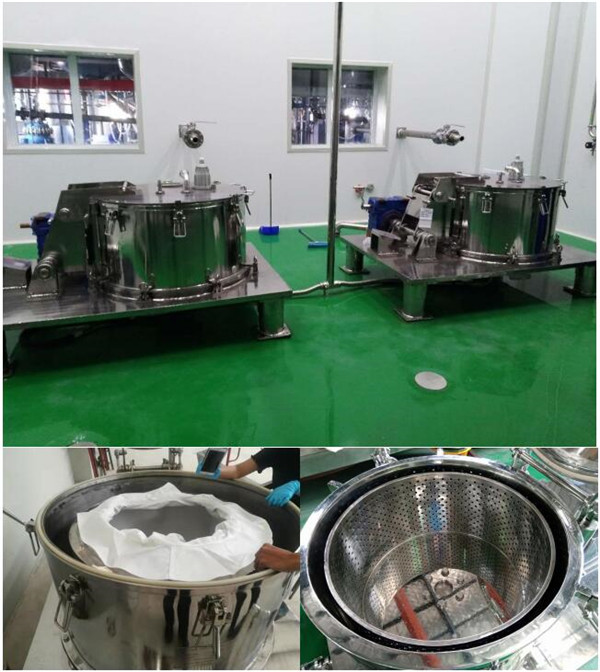

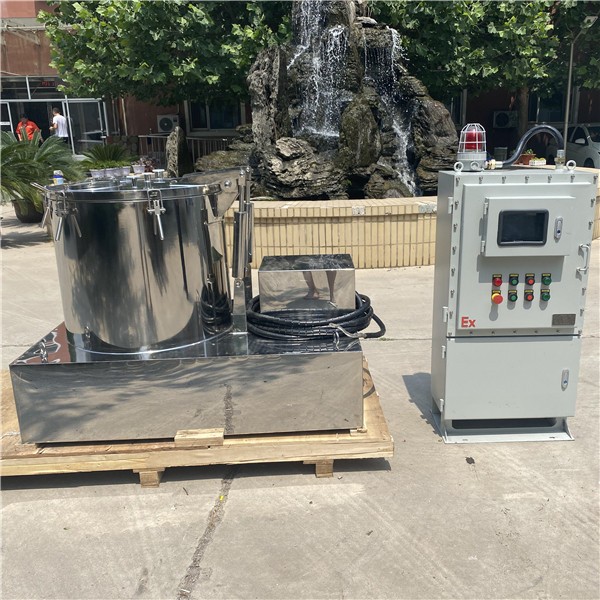

4. Picture
